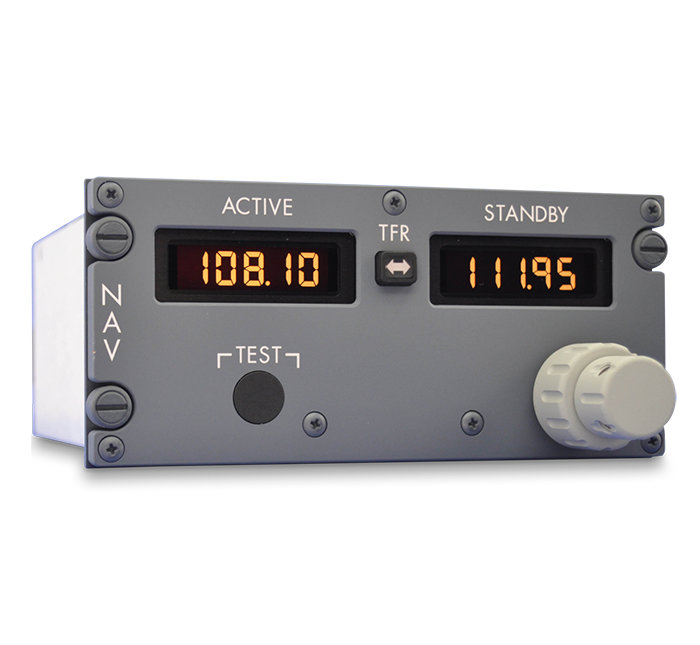

Picture of product G7500-03
Part #: G7500-03
Model: G7500-03
Desc: Nav Control Panel
OEM: Gables
NSN: 6110-01-554-1506
ECCN: 7A994
Cage Code: 99837
Part Number :
Gables Engineering

G7500-03



FEATURES

  • Provides tuning control of VOR, ILS, DME receivers
  • Provides internal fail monitoring and recording capability
  • Liquid spill-proof design
  • Modular construction contributes to economical maintenance
  • Gables G7500 Series VHF Nav is certified by Boeing for installation on the B737



SPECIFICATIONS

Dimensions: 2.610 (height) x 5.735 (width) x 5.5 (depth) inches, excluding rear connectors certification - aircraft: B737-NG
WEIGHT:

2.45 pounds (max)

color: Front Panel – Non-reflective Gray FEDSTD 595b36118, Front Panel Markings –White FEDSTD 595b37875 (FuturaMediumfont), Knob –Light GrayFED STD 595b36440, PushButtons –Non-reflectiveBlack FEDSTD 595b37038
Calculated MTBF:  22,000 operating hours Certification - Regulatory: TSO-C104, TSO-C36, TSO-C40c, TSO-C66c
CONNECTORS: J1 Mating: BACC63CB22-55SN, or equivalent 55 pin connector, J2 Mating: BACC63CB22-55S8, or equivalent 55 pin connector Frequency Range: The VHF NAV frequency range is from 108.00 to 117.95 MHz using 50 kHz spacing
Part Number: description:
G7500-03 NAV Control Panel



G7500-03
- Nav Control Panel

NSN: 6110-01-554-1506

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
