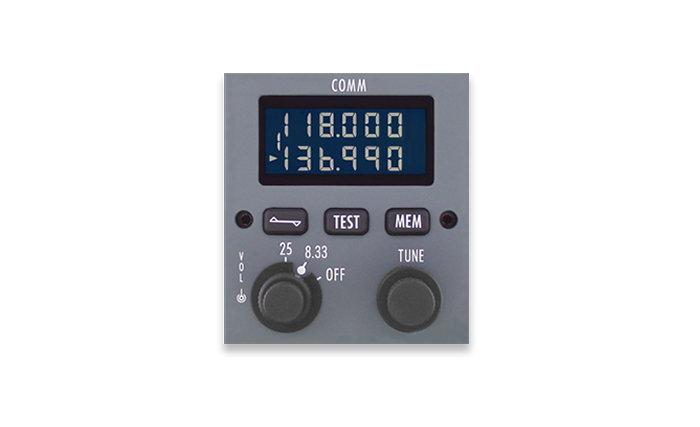

Picture of product G7610-21
Part #: G7610-21
Model: G7610-21
Desc: COMM,VHF
OEM: Gables
Part Number :

Gables Engineering



G7610-21



FEATURES

  • First Minima Twisted Nematic (FMTN) LCD Display
  •  Blue/White LED display and panel lighting for higher reliability – White or amber color display and NVIS options available (variant dependent)
  •  Active frequency on the upper display, standby on the lower (direct active tuning capable
  •  Single knob stack for standby or direct active frequency selection
  •  Transfer button for active and standby frequency interchange
  •  8.33/25 kHz selection capable
  •  Liquid splash-proof design
  •  Built-in-test (BIT) capability
  •  Flash technology to support bench-level reprogramming using a PC
  •  ARINC 566A capable
  •  ARINC 429 capable
  •  CSDB capable
  •  Volume control
  •  VDL Mode 2 capability
  •  Squelch disable via comm TEST push button
  •  DATA mode selection via frequency selector
  •  Non-volatile storage of front panel settings and memories
  •  Modular design provides flexibility for custom layouts
  •  Modular construction contributes to economical maintenance
  •  4 memory channels per mode





SPECIFICATIONS

Dimensions: 2.625 (height) x 2.375 (width) x 5.370 (depth) inches, excluding rear connector certification - aircraft: STC's available through third parties
WEIGHT: 1.1 lbs color: Black, Gray
Calculated MTBF: 20,000 COMPLIANCE: ARINC 429, ARINC 566A (COMM), ARINC 716, ARINC 720, ARINC 750, RTCA/DO-160D (Environmental), RTCA/DO-178B (Software), RTCA/DO-186A (VHF COMM)
power: Power (Including all lighting) 28VDC, 7.0Watts (max) Certification - Regulatory: TSO-C37d, TSO-C38d
CONNECTORS: J1 Mating: MS3476L24-61SW, or equivalent 61 pin connector LIGHTING: Panel/DisplayLighting (Blue/WhiteLEDs) 0–5VAC/DC or 28VDC
Frequency range: 118.00(0) to 136.97(5) MHz by 25 kHz steps, 118.000 to 136.990 MHz by 8.33 kHz steps, Optional extended range available via rear pin: 116.000 to 117.975 MHz, 137.000 to 151.975 MHz by 25 kHz steps
Part Number: description:
G7610-21 VHF Comm Control Panel



G7610-21
- VHF Comm Control Panel
Price Condition Status
RFQ RFQ RFQ
