Part #: G7613-202

NSN:

5826-01-597-4238

OEM:

Gables

Desc:

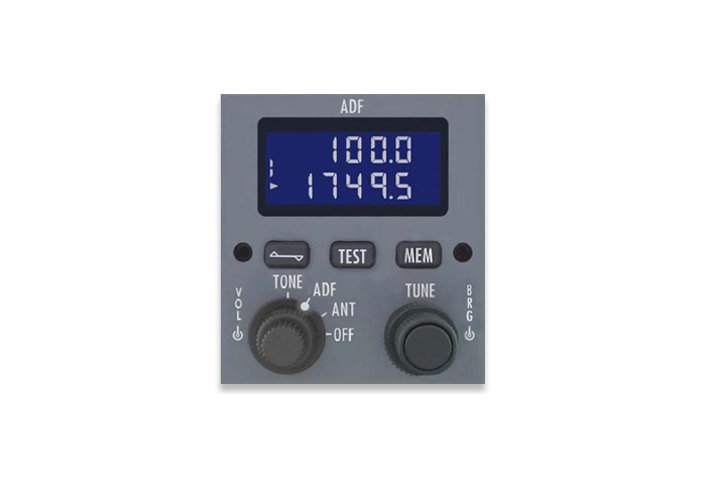

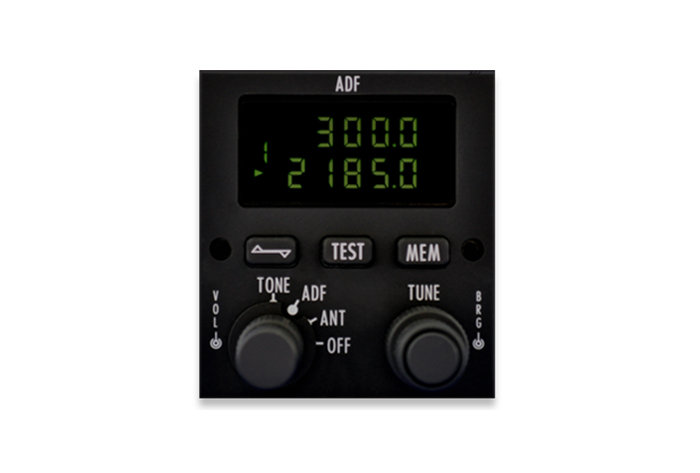

ADF - ARINC 429, NVIS B

Part Number :

Gables Engineering



G7613-202



FEATURES

  • First Minima Twisted Nematic (FMTN) LCD Display
  •  Blue/White LED display and panel lighting for higher reliability – White or amber color display and NVIS options available (variant dependent)
  •  Active frequency on the upper display, standby on the lower
  •  Single knob stack frequency selection
  •  Transfer button for active and standby frequency interchange
  •  ANT/ADF/TONE selection
  •  Optional BRG selection and display
  •  Optional OFF rotary position
  •  Optional VOLUME control
  •  CSDB tuning capable
  •  ARINC 429 tuning capable
  •  Parallel BCD tuning interface per ARINC 570 (for legacy ADF-60A and ADF-60B radios) – controls radio without a CAD-62 adapter
  •  4 memory channels per mode
  •  Liquid splash-proof design
  •  Built-in-test (BIT) capability
  •  Flash technology to support bench-level reprogramming using a PC
  •  Non-volatile storage of front panel settings
  •  Modular design provides flexibility for custom layouts
  •  Modular construction contributes to economical maintenance





SPECIFICATIONS

Dimensions: 2.625 (height) x 2.375 (width) x 5.370 (depth) inches, excluding rear connector certification - aircraft: STC’s available through third parties
WEIGHT: With Dzus adapter: 0.8 pounds (max), Without Dzus adapter: 0.7 pounds (max) color: Black, Gray
Calculated MTBF:  20,000 operating hours COMPLIANCE: RTCA/DO-160F (Environmental), RTCA/DO-178B (Software), RTCA/DO-179 (ADF) ARINC 429, ARINC 712, ARINC 720, ARINC 570
power: Power (Including all lighting) 28VDC, 7.0Watts (max) Certification - Regulatory: TSO-C41d
CONNECTORS: J1 Mating: MS3476L24-61SX or equivalent LIGHTING: Panel/DisplayLighting (Blue/WhiteLEDs) – 0–5VAC/DC or 28VDC
Frequency Range: The ADF frequency range is from 100.0 to 1799.5 kHz using 0.5 kHz spacing. The optional extended range is from 2100.0 to 2199.5 kHz using 0.5 kHz spacing.
Part Number: description:
G7613-202 ADF Control Panel



G7613-202
- ADF Control (NVIS-B)

NSN: 5826-01-597-4238
