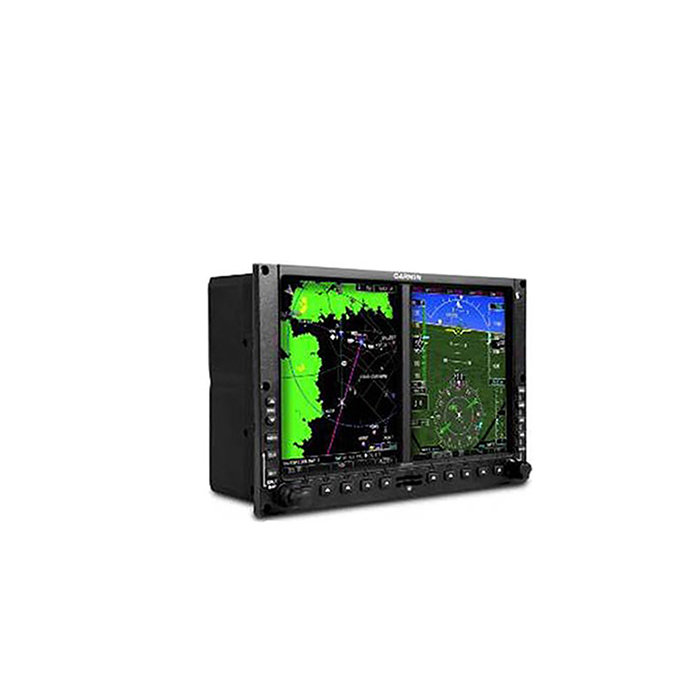

product image

Part #:

Model: G500H




G500H (Right-side PFD) System

Part Number :

  • Helicopter dual-screen electronic flight display
  • Engineered for safety and reliability in the helicopter environment
  • Dual 6.5" LCD Screens
  • Dual screens mounted side by side in a single bezel
  • Includes Primary Flight Display (PFD) and Multi-function Display (MFD)
  • PFD screen displays attitude, airspeed, altitude, climb rate & course/heading information
  • MFD screen displays detailed moving-map graphics depicting the helicopter's current position in relation to ground features, chart data, navaids & flight plan
  • System comes with preloaded geo-referenced SafeTaxi® diagrams for over 900 US airports
  • New system also includes trial version of Garmin's FlightCharts®
  • Available as an option: Garmin's HSVT™ - Helicopter Synthetic Vision Technology
  • HSVT provides powerful graphic perspective with a clear depiction of ground & water features, airports, obstacles, traffic and more - all shown in 3D perspective on the PFD
  • Replacing old style gyros - AHRS attitude/heading reference delivers high-precision spatial sensing for the G500H digital instrumentation
  • When interfaced with a GNS-430W/530W series HTAWS navigator, certified "forward looking" terrain avoidance (FLTA) capability is available
  • G500H is easily combined with a variety of optional sensors & data links:
  • GDL-69 series receiver offers weather alerting and NEXRAD coverage for the US via XM® satellite datalink
  • User interface with the GDL-69A provides XM Radio
  • Video input option lets the MFD function as a FLIR or other video source
  • Interfacing to GTX-330 allows access to Traffic Information Service (TIS) alerts on the G500H
  • Also available is the GSR-56 Iridium-based satellite transceiver
  • Provides an affordable, worldwide position tracking solution that enables aircraft location data to be monitored via web-based display on authorized base-ops computers
  • The G500H is available with the PFD on the right or left side of the bezel for easy viewing depending on pilot position

Additional Information: View the G500H FAA STC Approved Model List (AML) Click Here for G500H Pilot's Guide


- G500H (Right-side PFD) System
Price Condition Status
- G500H (Left-side PFD) System
Price Condition Status

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.

In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
