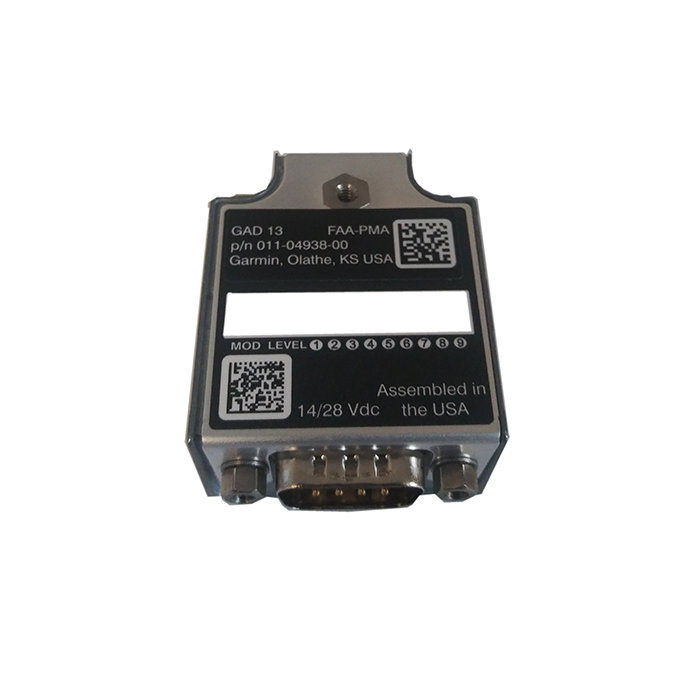

Picture of product GAD-13

Part #: 010-02203-00

Model: GAD-13

OEM:

Garmin

Desc:

OAT Interface

Part Number :



GAD-13

FEATURES

  • Interface unit to OAT probes to Garmin units such as the G5 instrument
  • Provides a standard three-wire or two-wire interface that can be connected to the following approved OAT probes:
  • OAT analog information from the GAD 13 is converted to digital information, and passed to other G5 system LRUs using CAN communication
  • Connection to GAD 13 enables the G5 to display TAS, OAT, and crosswind information
  • GTP 59C307PS (Davtron)Interface unit to OAT probes to Garmin units such as the G5 instrument
  • Provides a standard three-wire or two-wire interface that can be connected to the following approved OAT probes:



SPECIFICATIONS

width: 1.43 Inches height: 0.78 Inches
Depth: 1.91 Inches unit weight: 0.14 Lbs.
power requirements: (Includes OAT probe) Average/Max Current Draw @ 14 VDC .120-Average/Max Current Draw 28 VDC/ .050 A
Part Number: Description:
010-02203-00 Unit Only ordering PN
010-02203-K0 Complete Kit w/ GAD-13 unit, GTP-59 OAT probe, connector kit
011-04938-00 Unit Only PN on unit dataplate









010-02203-00
- OAT Interface (FAA-PMA, Unit Only)
Price Condition Status
$155.00 NEW OUTRIGHT REQUEST LEAD TIME
