Part #: 010-01560-31

Model: GDL-82

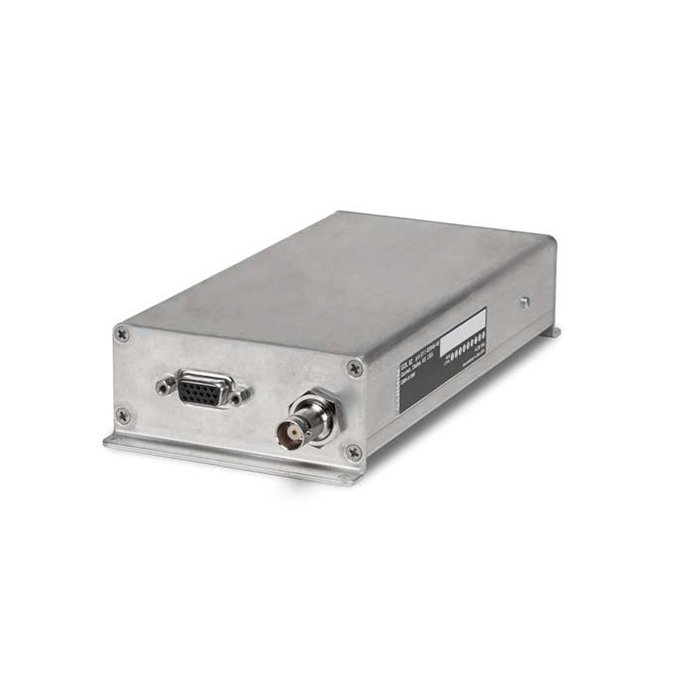

Garmin - ADS-B Datalink
Part Number :

  • ADS-B Out Datalink
  • Small, lightweight Universal Access Transceiver (UAT) datalink with built-in GPS receiver, includes GPS Antenna
  • Economical turnkey solution to satisfy requirements of ADS-B Out
  • Broadcasts on 978 MHz frequency, providing a rule-compliant ADS-B Out solution for aircraft operating below 18,000' in the United States
  • Quick installation utilizing a patent-pending design, in which the GDL 82 is installed in-line with the aircraft's existing transponder antenna wiring to transmit the necessary ADS-B Out information
  • Contains AutoSquawk interrogation technology which interfaces with most Mode C GA transponders to synchronize the squawk code, eliminating the need to install a separate dedicated UAT control panel and altitude encoder
  • Pilots who already utilize an ADS-B In receiver (such as GDL 52, GDL39/39 3D) can receive additional benefits as the GDL 82 complements many existing products on the market
  • Expected to be Available in Q4 2017
part number GDL description:
010-01560-31 GDL 82, GPS, Standard


- ADS-B Datalink
