Part #:

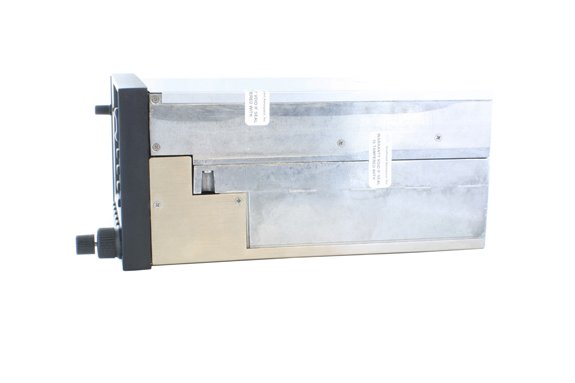

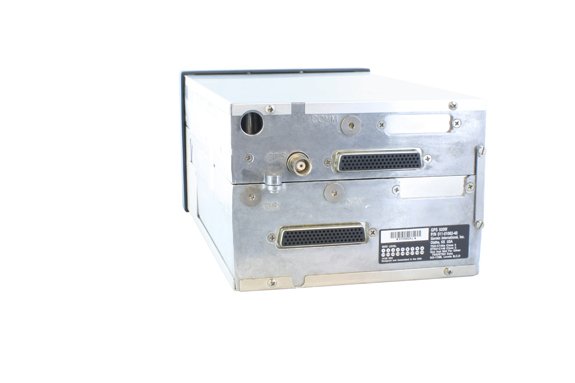

Model: GPS-500W

OEM:

Garmin

Desc:

WAAS GPS System

Part Number :



GPS-500W
FEATURES
  • WAAS Certified GPS with color moving map and includes the features of the GNS-530W without Nav & Comm
  • Big picture situational awareness, WAAS navigation & interface capabilities
  • 5-inch high-contrast display, direct sunlight viewable
  • Complies with WAAS TSO C146a "sole means" navigation
  • Provides vertical and lateral approach guidance to thousands of US airports
  • Approved to fly LPV "glideslope" approaches w/out reference to ground-based navaids
  • Advanced 15-channel receiver, including 3 WAAS, with update rate of 5 per second
  • See your position relative to ground features, chart data, navaids, flight plan routings, approach procedures and more
  • Integrates built-in terrain and navigation databases
  • Jeppesen database, updated with front-loading data cards, contains location reference for all airports, VORs, NDBs, Intersections, Flight Services Stations, published approaches, SIDs/STARs, Special Use Airspace and geopolitical boundaries
  • Detailed basemap shows airports, cities, highways, railroads, rivers, lakes, coastlines & more
  • One box design with simple operation
  • User-configurable display
  • Separate internal battery protects stored data for up to five years
  • Easy to interface w/a variety of optional sensors & tracking systems
  • Includes basemap, US Terrain & Obstacles database, and Navigation database
  • Jeppessen data types include full and non-precision approaches, DPs and STARs
  • Navigation database cover areas include Americas, International or Worldwide
  • Accuracy of 1 meter RMS lateral typical, 2 meter vertical, with WAAS
  • Acquisition time 1:45 minute typical (cold), 10 seconds reacquisition
  • Nav Features Include: Navigation with flight plans and direct-to waypoints, approach navigation using published approaches stored on the NavData card, terminal navigation using DPs and STARs from NavData card, closest point of flight plan, arrival and departure frequencies, turn advisories and arrival annunciations
  • Planning Features Include: Trip and fuel planning, true air speed, density altitude, winds aloft, flight timers, trip statistics, checklists, sunrise and sunset, RAIM availability, advisory vertical navigation (VNAV)
  • Interfaces Include: ARINC 429, RS-232, CDI/HSI, RMI (digital), altitude input (serial: Icarus, Shadin-Rosetta; encoded Gillham/gray code), fuel sensor, fuel/air data, GDL 69/69A XM, GTX 330/33D, L-3 Stormscope, L-3 Skywatch, Ryan TCAD, GAD 42, and others
  • Map Datums: WGS-84
  • With Optional subscription to XM WX Satellite Weather & optional GDL 69 or 69A datalink receiver  NEXRAD, METARs, TAFs, lightning and more can be laid directly over Jeppesen and topographic map databases
  • With additional monthly service fee, GDL 69A provides XM Satellite Radio
  • Add GTX 330 Mode S Transponder and the GPS will also display TIS alerts
  • Can be upgraded with optional Class B TAWS alerting

Additional Information: Click Here for the Quick Reference Guide Click Here for the Pilots Guide



SPECIFICATIONS

Unit Dimensions: 6.25"W x 4.60"H x 11"D Display Size:  4"W x 3"H
Display Resolution: 320 W x 234 H pixels Display Type: 8 color TFT LCD
Weight: 6.8 lbs Voltage Range:  14-28
Built-in VHF Comm: no Transmit Power: no (VHF comm not included)
Built-in VOR/Loc/GS: no Receiver: 12 channel
IFR or VFR: IFR  Basemap: yes
Waypoints: 1000 Flight Plans: 20 reversible; up to 31 waypoints each
Dynamics: 1000 knots max GPS: TSO-C146a, Class 3
VOR: TSO-C40c LOC: TSO-C36e
GS: TSO-C36e
Part Number: Description:
011-01062-00 WAAS GPS System, Black
011-01062-10 WAAS GPS System, Gray
011-01062-40 Black, upgraded from non-WAAS unit
011-01062-50 Gray, upgraded from non-WAAS unit
011-01063-00 WAAS GPS System, Black w/ TAWS
011-01063-10 WAAS GPS System, Gray w/ TAWS
011-01063-40 Black w/ TAWS, upgraded from non-WAAS unit
011-01063-50 Gray w/ TAWS, upgraded from non-WAAS unit



011-01062-00
- WAAS GPS Receiver (Black)

NSN: 5826-01-562-7986

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-01062-40
- WAAS GPS Receiver (Black)

NSN: 5826-01-562-7986

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-01063-00
- WAAS GPS w/TAWS
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-01063-10
- WAAS GPS-w/TAWS

NSN: 5826-01-594-5306

Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-01063-40
- WAAS GPS w/TAWS
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-01063-50
- WAAS GPS w/TAWS
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Garmin has provided Service Advisory 2051 for general recommendations, materials, and supplies to clean and disinfect Garmin products. Otherwise, not following the recommendations could void the warranty.

  • Cleaners containing ammonia will harm the anti-reflective coating on many Garmin aviation display lenses.
  • Disinfectant with a solution of 70% isopropyl alcohol that does not contain ammonia is preferred. Solutions of up to 91% isopropyl alcohol are also acceptable.
  • Clean the display lens using a clean lint-free cloth and a cleaner that is specified as safe for anti-reflective coatings.
  • For other exposed surfaces such as knobs, buttons, and bezels, a damp cloth with soap and water is acceptable.
  • Bleach-based cleaners, ammonia-based cleaners, or other harsh chemicals on any surface are not recommended.
  • Remove all soap/soap residue to prevent buttons and knobs from gumming up or becoming slippery.
  • Many aviation products are not rated as waterproof. Spraying or wetting the units to the extent where moisture could go beyond the exterior surfaces could damage the unit.

Traffic can be displayed in two different map views on the 400 and 500 series aviation devices. The thumbnail view is always in a track-up reference while the map view can be in either a track-up or north-up reference. To see traffic simultaneously on the map and on the thumbnail, the orientation of the map must be set to track-up. Otherwise, traffic will only be shown on the map and the thumbnail will say "See Map".

The WAAS systems have the same capabilities as the 400/500 systems plus a few more. With the WAAS signal being acquired, the GPS can give vertical guidance to a runway similar to an ILS glide slope indication. The WAAS units have added display capability when connected to our GDL 69(A) XM Satellite weather/radio receiver. They also have additional ARINC 424 leg types to guide a compatible autopilot through procedure turns and published holds.

An altimeter does not measure altitude on the Garmin GPS  device. The altimeter in the aircraft measures air pressure. The altimeter is calibrated to display a certain change in altitude based on a change in air pressure. For every inch of mercury pressure change, the altimeter displays a change of approx. 1000 ft. of altitude. The GPS does not use air pressure to determine altitude and is not subject to the pressure errors in determining altitude. Therefore, the GPS derived altitude is almost always more accurate than an altimeter. Since everyone uses a pressure-based system to determine altitude, it is integral to utilize a pressure sensitive altimeter to ensure required vertical separation.

The 400/500W units with WAAS capability offer many new features and enhancements over the classic models. Some enhancements include WAAS enable GPS antenna, receiver, and software. The 400W/500W series units comply with WAAS TSO C146a and include hardware upgrades with a faster micro-processor. A terrain database for terrain awareness is included a standard feature. Most importantly, the WAAS GPS receiver allows pilots to use the GNS-400W/500W units for primary navigation and vertical guidance for LPV, L/VNAV, and LNAV+V approaches.

For a complete summary of the feature changes and enhancements, click Here.
In short, WAAS approach-capable GPS units provide lateral and vertical guidance to many airports that have never had a precision approach. As of Feb. 2007, there are 640 GPS-based LPV approaches with minimums as low as 200 feet and 1/2 mile visibility. There are also over 1000 LNAV/VNAV approaches that provide vertical guidance with WAAS capable GPS units. There are also 1000s of other approaches with advisory vertical guidance. More and more approaches are being added each month.
Yes, but please note the following considerations.

For the S-Tec System 20 or 40, these systems are roll axis only. However, if equipped with a GPSS converter, these systems will follow the lateral steering commands from the GPS for a WAAS approach. Vertical guidance is pilot controlled.

For the S-Tec System 30 or 50, these systems are roll axis and altitude hold only. However, with a GPSS converter, these systems will follow the lateral steering commands from the GPS for a WAAS approach. Vertical guidance is pilot controlled.

For the Systems 55, 55X, 60-2, 60PSS, or 65, these systems will track the lateral deviation from the GPS navigator in the Approach (APR) mode and the vertical deviation in the Glideslope (GS) mode. If you are using a 55X or other autopilot systems equipped with a GPSS converter, they will not couple to a WAAS approach in GPSS mode. To follow both the vertical and horizontal deviations of a WAAS approach, the autopilot must be in Approach (APR) mode and Glideslope (GS) mode. The 60PSS system is pitch axis only and will follow the vertical deviation in Glideslope (GS) mode.
Under certain conditions, the Garmin 400W/500W series units will not provide serial heading information to the L3 WX-500 Stormscope. Even if the WX-500 unit is wired for synchro heading, there may be issues with the WX-500, GDL-69 datalink, and crossfill between two Garmin units. Also, some issues have been encountered with the COM flip/flop key not switching between the active and standby frequencies. As of 8/20/07, Garmin plans to resolve these issue with the next software release. The software upgrade should be able to be completed at your local Garmin authorized facility.
At this time, the Garmin 400W/500W series WAAS units are approved for interface to the following EFIS systems:

Honeywell EFIS 40/50 with the SG 465 symbol generator with the following limitation: No vertical guidance is provided for GPS approaches.

Sandel SN3308 with the following limitation: GPS lateral and vertical guidance is provided using the analog interface.

Sandel SN3500 with the following limitation: Vertical guidance is provided for GPS approaches.

This is specified in the latest Garmin 400W series installation manual P/N 190-00356-02 Rev. C, dated April 2007.

For handheld GPS receivers, database updates can be ordered and downloaded directly through Garmin's Internet site.

For panel mount GPS receivers, all database cards and computer downloads (if applicable) must be ordered through Jeppesen. Contact Jeppesen at www.jeppesen.com for more information.

Yes, the Garmin GNS400/500 systems meet RNP5 airspace (BRNAV) requirements of AC 90-96 and in accordance with AC 20-138, and JAA AMJ 20X2 Leaflet 2 Revision 1, provided it is receiving usable navigation information from the GPS receiver.
There is some confusion in the avionics industry relating to the various terms used for terrain awareness, terrain advisory, and terrain alerting systems. Not all terrain systems are certified to Class A or B TAWS standards specified in FAA TSO C147b. If a terrain system is certified and approved to FAA TAWS standards, then the manufacturer will specifically use the term "TAWS" and/or "Class A/B TAWS". In most if not all cases, the term "terrain advisory" should not be understood to indicate "TAWS" or imply the product meets TSO C147b.
Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
