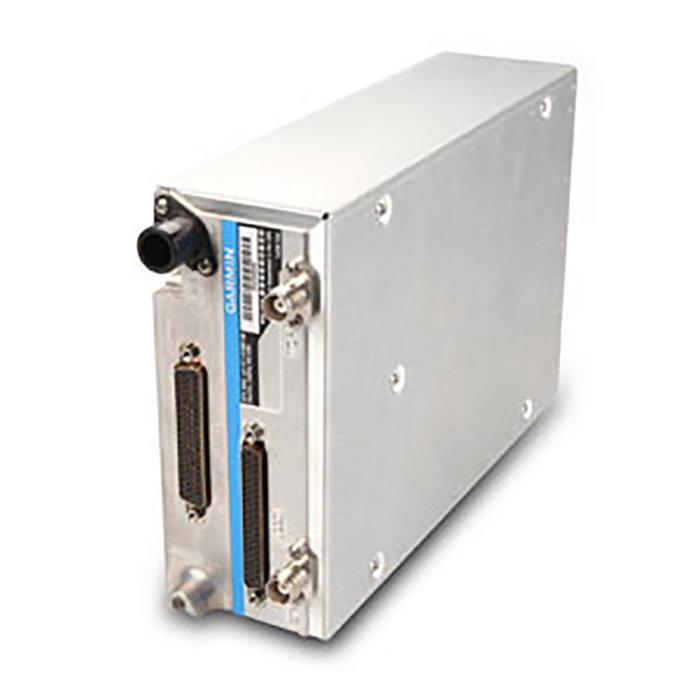

Picture of product GTX-3000HE
Part #: 011-01997-02
Model: GTX-3000HE
Desc: Mode S / ADS-B Transponder (Harsh Environment)
OEM: Garmin
Sched-B: 8526100010
ECCN: 7A994
Part Number :



GTX-3000HE

FEATURES

  • Remote-mount Mode S and ADS-B complaint transponder suitable for installation in Part 25 jets and any class of Part 23 aircraft
  • Implements ARINC, UF16 and DF16, and BDS(3,0) support for TCAS II operation
  • The unit has high transmit power sufficiant to accommodate longer (more signal loss) antenna cable runs in larger aircraft while meeting TSO requirements for transmit power
  • Designed and certified to meet DO-160 categories suitable for installation outside the pressure vessel and in aircraft
  • Designed to be controlled from a Garmin Intergrated Flight Deck
  • Harsh Environment Chassis



SPECIFICATIONS

eNVIRONMENTAL QUALIFICATION FORM: 005-00503-01 FCC AUTHORIZATION: Emission Designator 8M94M1D
FCC AUTHORIZED ID: IPH - 01443 MAXIMUM OPERATING ALTITUDE: 55,000 ft.
antenna cable requirements: Cable + bulkhead connector loss @ 1090 MHz <3.0 dB HUMIDITY: 95% non-condensing
OPERATING TEMPERATURE RANGE: -55°C to +70°C TRANSMITTER POWER: 250 Watts minimum, 300 Watts nominal
transmittter frequency: 1090 MHz ± 1 MHz receiver frequency: 1030 MHz
receiver sensitivity: -74 dBm nominal for 90% replies MAXIMUM DAYS OF CONTINUOUS: 48 days
external suppression input: Low ≤ 1.0 V; High ≥ 9 V external suppression output: Minimum is greater than +18V into 350 Ω in parallel w/1800 pF, Maximum is less than +36V into any load
Antenna Compatibility: Compatible with any antenna certified to one of the following TSOs: TSO-C66() [DME TSO], TSO-C74 () [ATCRBS TSO], TSO-C112 () [Mode S TSO] DIMENSIONS: 3.40"W x 6.85"H x 13.88"D (rack /w connectors)
Weight: 6.1 lbs. (2.36 kg) TSO/MOPS: C166B DO-260B, C112d DO-181E
ETSO/MOPS C166b ED-102A, C112d ED-73E
Part Number: Description:
011-01997-02 Mode S / ADS-B Transponder (Harsh Environment)













011-01997-02
- ADS-B Transponder (Harsh Environment)
