Part #: 980-4100-FWUS

Model: 980-4100-911

Honeywell - Flight Data Recorder

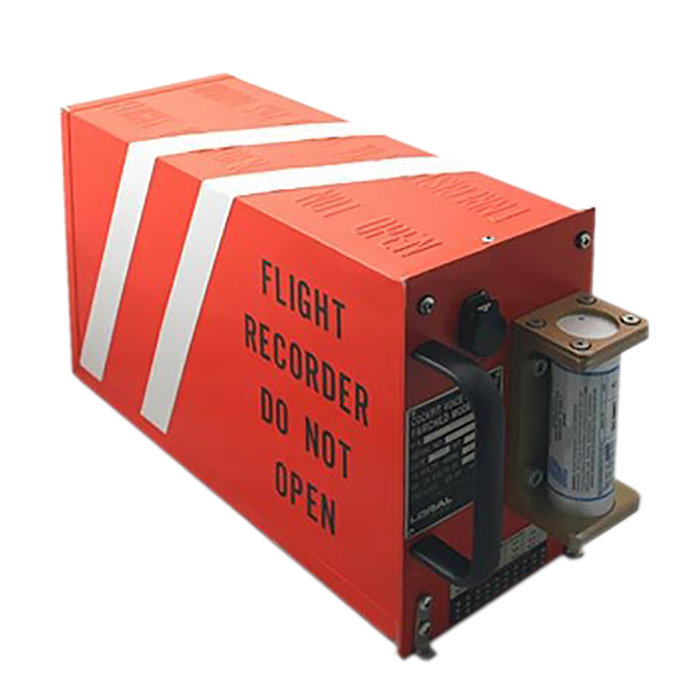

product image
Part Number :

  • Universal Flight Data Recorder with ChecStroke
  • A 25 hour, crash-protected digital tape recorder offered in a variety of configurations

Click here to view a "UFDR Model Variations" diagram.


Form Factor: 1/2 ATR Long  Recording Capacity: Min 25 hours at 768 BPS
Weight: Approximately 30 lbs Finish: International Orange
Input Power: 115 Volt/400 Hz, single phase Input Interface (DFDR): ARINC 573/717 data stream from remote FDAU
Input Interace (FDR): Vertical acceleration, Altitude (2), Airpseed (synchro & pneumatic), Heading (synchro), Marker Beacon, 3 discretes or ARINC 573/717 FDAU input Input Interface, Extended Channel (FDR): Same as FDR, plus 7 additional synchro inputs
Tape Format: Blocked incremental, bi-phase encoded, w/768 data BITS, preamble, postamble & IRG Tape Speed: Recording: incremental 5ips = 0.41ips (net), Playback: 5ips
Tape Capacity: 385 feet or 25 hours recording Number of Tracks:  8-track bi-directional, sequential
Connector Index Pin Code:  In accordance with ARINC No. 573/717 Playback Time: 30 min. (w/copy recorder), 2 hrs. (sequential track transcription)
Environmental Conditions: RTCA DO-160, TSO-C51A Crash Survivability: TSO-C51A
Part NumberFlight Data Recorder Description:
980-4100-AXUS See Diagram
980-4100-BXUN See Diagram
980-4100-DXUN See Diagram
980-4100-DXUS See Diagram
980-4100-EMUN See Diagram
980-4100-EMXN See Diagram
980-4100-EXUN See Diagram
980-4100-FMUN See Diagram
980-4100-FWUS See Diagram
980-4100-FXUS See Diagram
980-4100-GMUN See Diagram
980-4100-HXUN See Diagram
980-4100-RQUS See Diagram


- Flight Data Recorder
Price Condition Delivery

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
