Part #: 980-4100-EXUN

Model: 980-4100-920

Honeywell - Flight Data Recorder

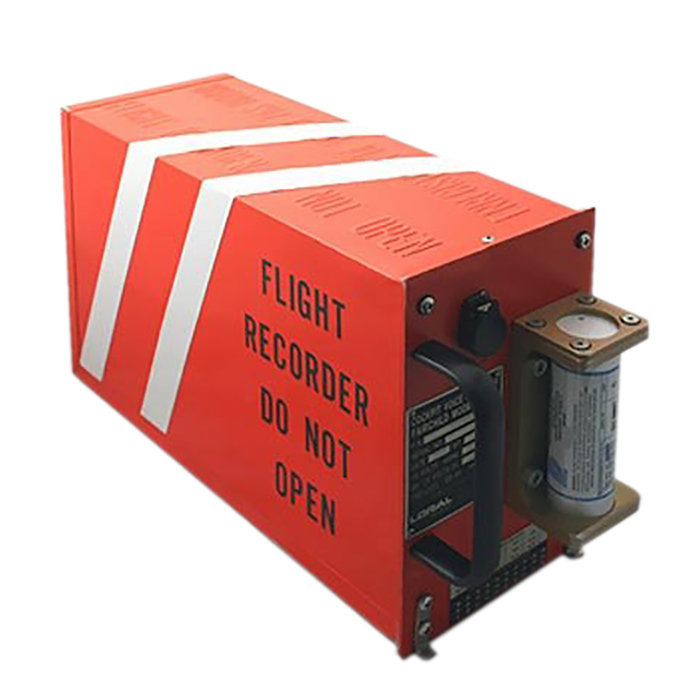

product image
Part Number :


UFDR
FEATURES
  • Universal Flight Data Recorder with ChecStroke
  • A 25 hour, crash-protected digital tape recorder offered in a variety of configurations

Click here to view a "UFDR Model Variations" diagram.



SPECIFICATIONS
Form Factor: 1/2 ATR Long  Recording Capacity: Min 25 hours at 768 BPS
Weight: Approximately 30 lbs Finish: International Orange
Input Power: 115 Volt/400 Hz, single phase Input Interface (DFDR): ARINC 573/717 data stream from remote FDAU
Input Interace (FDR): Vertical acceleration, Altitude (2), Airpseed (synchro & pneumatic), Heading (synchro), Marker Beacon, 3 discretes or ARINC 573/717 FDAU input Input Interface, Extended Channel (FDR): Same as FDR, plus 7 additional synchro inputs
Tape Format: Blocked incremental, bi-phase encoded, w/768 data BITS, preamble, postamble & IRG Tape Speed: Recording: incremental 5ips = 0.41ips (net), Playback: 5ips
Tape Capacity: 385 feet or 25 hours recording Number of Tracks:  8-track bi-directional, sequential
Connector Index Pin Code:  In accordance with ARINC No. 573/717 Playback Time: 30 min. (w/copy recorder), 2 hrs. (sequential track transcription)
Environmental Conditions: RTCA DO-160, TSO-C51A Crash Survivability: TSO-C51A
Part NumberFlight Data Recorder Description:
980-4100-AXUS See Diagram
980-4100-BXUN See Diagram
980-4100-DXUN See Diagram
980-4100-DXUS See Diagram
980-4100-EMUN See Diagram
980-4100-EMXN See Diagram
980-4100-EXUN See Diagram
980-4100-FMUN See Diagram
980-4100-FWUS See Diagram
980-4100-FXUS See Diagram
980-4100-GMUN See Diagram
980-4100-HXUN See Diagram
980-4100-RQUS See Diagram



980-4100-EXUN
- Flight Data Recorder
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No
