Part #:

Model: AP-3001

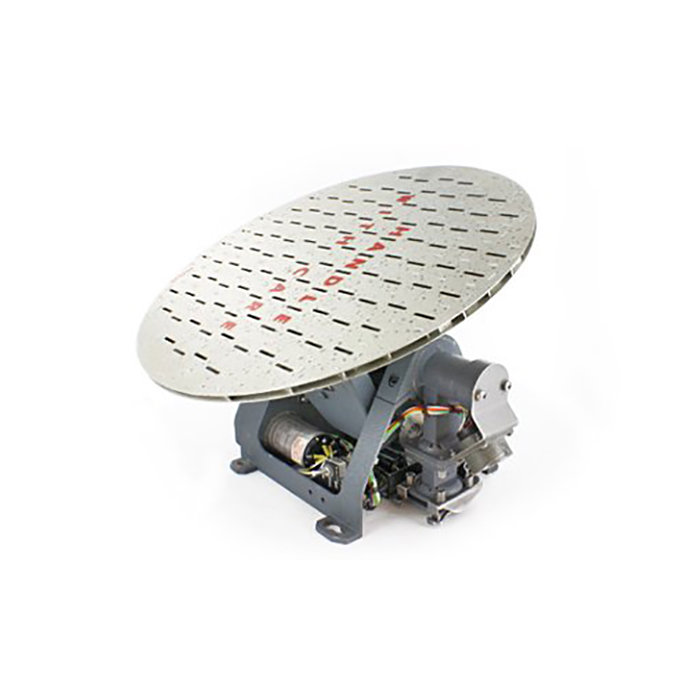

Honeywell - Radar Antenna

Part Number :

Price	Condition	Delivery	Action
$1,000.00	SV OUTRIGHT	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 1:00:57 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 1:00:57 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 1:00:57 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 1:00:57 EST *

SEA Repair Capabilities: Yes

AP-3001

FEATURES

Radar antenna pedestal used in Primus 300SL Radar System
Normally equipped with 12" flat-plate phased array but 18" flat-plate also available
Switch provided to stop antenna scanning during testing
Provides line-of-sight stabilization
Pedestal configuration available with waveguide mating flange and main connector on upper side of pedestal (see table below)
Pedestal available with flange and connector on bottom of pedestal (see table below)
Models available with either +-25 or +-30 degree stabilization (see table below)

SPECIFICATIONS

Dimensions:	9.17"W x 9.06"H x 5.438"D (figures do not include flat plate)	Weight:	7.4
TSO:	Category D2AJXXXXXXXABBBB, Class 7

Part Number	Radar Antenna Description:
MI-585224	Waveguide up, +-25 deg. stabilization
MI-585224-1	Waveguide down, +-25 deg. stabilization
MI-585224-2	Waveguide up, +-30 deg. stabilization
MI-585224-3	Waveguide down, +-30 deg. stabilization

MI-585224

- Radar Antenna

Price	Condition	Delivery
$1,000.00	SV OUTRIGHT	CALL OR RFQ

SEA Repair Capabilities: Yes

MI-585224-1

- Radar Antenna

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

MI-585224-2

- Radar Antenna (P300)

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

MI-585224-3

- P300 Antenna

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Are there any MFDs I can use with the Primus 300 or Primus 400 system in my aircraft?

As of January 2010, the only Multi Function Displays that are compatible with the Primus 300 or Primus 400 radar systems are the Honeywell MFRD and the Universal MFD-640. For pricing and additional information on these MFDs, please submit an RFQ to SEA today.
