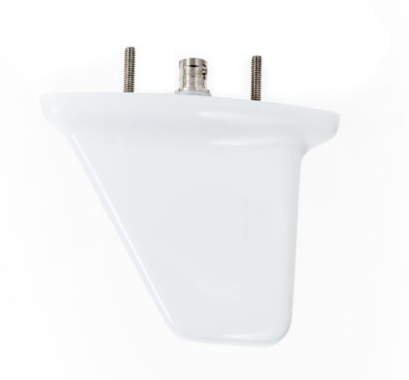

Picture of product KA-61A

Part #: 89000030-001

Model: KA-61A

OEM:

Honeywell

Desc:

L-Band Antenna-BNC

Part Number :


KA-61A
FEATURES
  • L-Band Antenna with BNC connector
  • Drop-in replacement for the KA-60 and KA-61 L-Band Antenna (CI 105-16)
  • Replacement antenna that may be used with various DME and Transponder products
  • Longer mounting studs for thicker mounting locations
  • Housing constructed of anacrylonitrile-styrene-acrylic (ASA)
  • Supplied with cellular neoprene mounting pad and hardware
  • Designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft
  • Drag force of 0.09 lbs @ 250mph
  • Environmental categories: DO-160D [D2]XACA[SXX]XSXDRSXXXXX[XXX]X[XXXX]XXX
  • Supplied by RAMI, P/N AV-74(-1BK)



SPECIFICATIONS
height: 3.4" (not including mount) weight: 0.20 lbs Max
Application: Transponder/DME/ADS-B Frequency: 960-1220 MHz
impedance: 50 Ohms Nominal VSWR: 1.5:1 Max
polarization: Vertical pattern: Omni-Directional
RF Power Capacity: 2.5 kW Peak Rated airspeed: 350 mph
FAA TSO: C66c, C74c Color: Gloss White
connector: BNC Female mounting studs: 8-32 studs
Part Number antenna Description:
89000030-001 L-Band Antenna-BNC (RAMI P/N: AV-74-1)



Serial # 180723
Condition NEW
Mods -
Tag Date 08/16/18
Shop R.A. Miller Industries Inc.
Warranty 1 Year
89000030-001
- L-Band Antenna (BNC)
Price Condition Status
$230.00 NEW OUTRIGHT 1 IN STOCK
