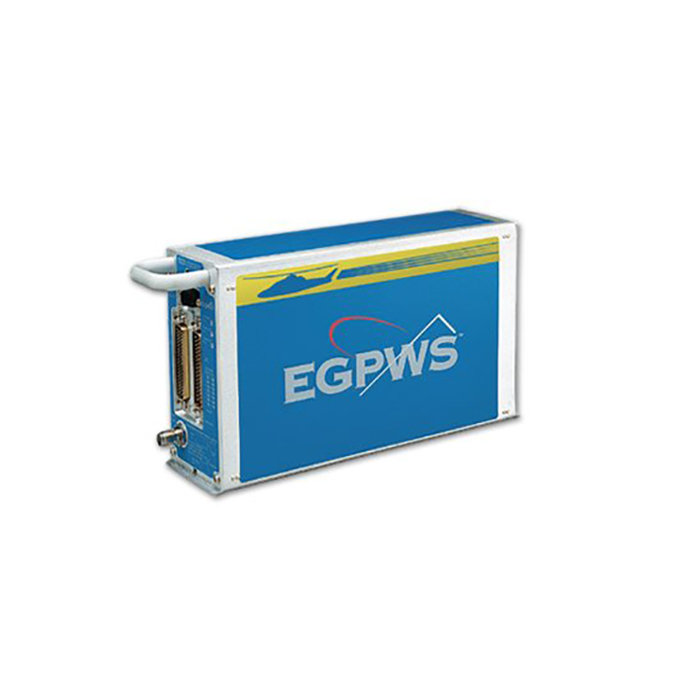

Picture of product MK XXII

Part #:

Model: MK XXII

OEM:

Honeywell

Desc:

EGPWS Computer, Helo, w/ GPS

Part Number :


Mark XXII Helicopter EGPWS
FEATURES
  • Helicopter Enhanced Ground Proxy Warning System (EGPWS)
  • Designed specifically for single and multi-engine turbine helicopters
  • Proprietary Honeywell Database
    • World Terrain Database (11 Regions)
    • Airports
    • Helicopters
    • Obstacles
    • Oil Rigs
  • Utilizes a limited number of analog and digital inputs to provide Mode 1-6 alerts (cautions and warnings)
    • Mode 1 - Excessive Descent Rate
    • Mode 2 - Excessive Closing Rate/Rising Terrain
    • Mode 3 - Descent After Takeoff
    • Mode 4 - Terrain Clearance
    • Mode 5 - Descent Below Glideslope
    • Mode 6 - Altitude Callouts
  • Excessive Bank Angle
  • Tail Strike Protection
  • Autorotation
  • Meets North Sea AVAD callout Requirement
  • Provides automatic Auto-Rotation callouts after receiving information that the engine(s) have failed
  • Terrain Alerting and Display (TAD) provides the crew a graphic display of the surrounding terrain that is above or within 1500 feet below the aircraft
    • Auto Display Pop-up
    • Auto Range
    • Enroute Terrain Display (peaks)
    • Vertical Situation Display (VSD
  • Look-Ahead Algorithms provide the ability to look ahead of the aircraft and detect terrain or obstacle conflicts with greater alerting time
  • 28 VDC non-ARINC sized box
  • Internal GPS card
  • Provides an output for the display of terrain on a compatible EFIS, EFIS MFD, Radar Indicator, FMS CDU's or standalone indicators
  • Allows for three EGPWS Suppression Options
    • Low Altitude Mode
    • Audio Inhibit (5 minutes)
    • Terrain Inhibit
  • Airspeed Expansion
  • Enveloped Modulation
  • Tower Guy Wires
  • Built-in Test
  • System exceeds the FAA TSO-C194 requirements for HTAWS
SPECIFICATIONS
MTBF: 5,500 operating hours  Packaging Non-ARINC
Power: 15 watts normal operation Voltage:  28 VDC
Dimensions: 6.2"H x 3.0"W x 12.1"L Weight: 3.9 lbs
Cooling: ARINC 600-6, forced-air cooling not required Environmental:  Meets RTCA DO-160D
Humidity Range:  Tested to 85% RH for 48 hours Temperature Range:  -55°C to +70°C
Warranty:  3 years
Part NumberEGPWS Configuration Module:
965-1595-0XX see details above. -0XX defines the Application software version



965-1595-020
- EGPWS Computer, Helo, w/ GPS

NSN: 6340-01-553-4383

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
965-1595-021
- EGPWS Computer, Helicopter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
965-1595-022
- EGPWS Computer, Helo, w/ GPS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
965-1595-024
- EGPWS Computer, Helo, w/ GPS
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
965-1595-026
- EGPWS, Helicopter, w/ GPS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
965-1595-028
- EGPWS Computer w/GPS
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
965-1595-030
- EGPWS Computer
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
