Part #:

Model: RT-1151A

Honeywell - Radar Transceiver

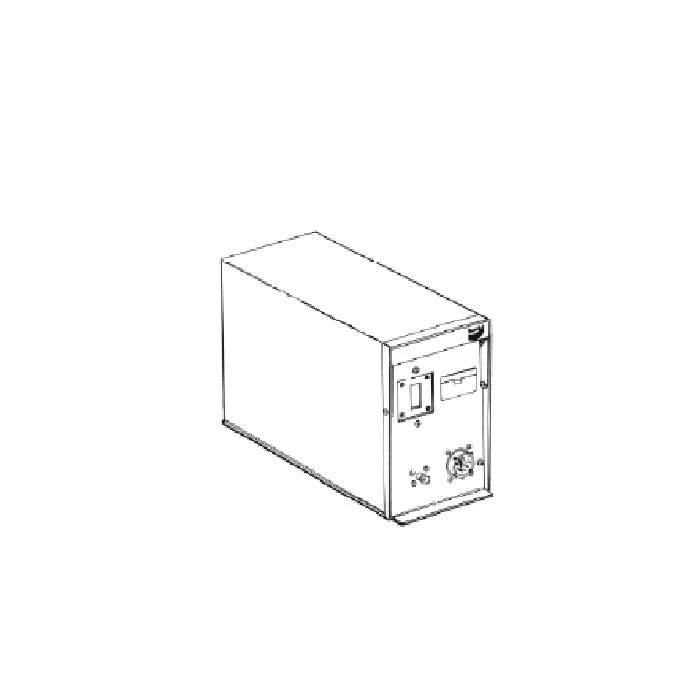

product image
Part Number :


RT-1151A
FEATURES
  • Bendix Radar Receiver Transmitter used in RDR-1150HP 3-piece color radar system
  • 7.9 kw peak power (typical)
  • Can be mounted vertically or horizontally
  • Solid-state
  • Contains self-test feature
  • DC powered



SPECIFICATIONS
RF Power Output: 7.9 kW peak power Frequency: (X-Band) 9375 MHz +-35 MHz
PRFs: 400 Hz or 100 Hz Weight: 10.5 lbs.
Dimensions: 5.04"W x 7.72"H x 13.83"L TSO: DO-160A Env. Cat. /F1A1/A/MJY/XXXXXXBBABA and -40deg. C Class 7
Part NumberRadar Receiver Transmitter Description:
4001921-5101 see features above



4001921-5101
- Radar Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

4001921-6101
- RADAR R/T
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Weather radar transceivers use a magnetron which is basically a cathode emission device. The magnetron is subject to deteriorization due to aging. Therefore, it is recommended to perform some type of periodic maintenance to detect and correct the effects of aging. This reduces the chance of an in-service failure.

An annual, routine test of the following parameters should made:

- Power output
- Transmitter frequency
- AFC voltage
- Sensitivity (MDS)

Ideally, the test should take place between December and March prior to the peak thunderstorm season.
Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
