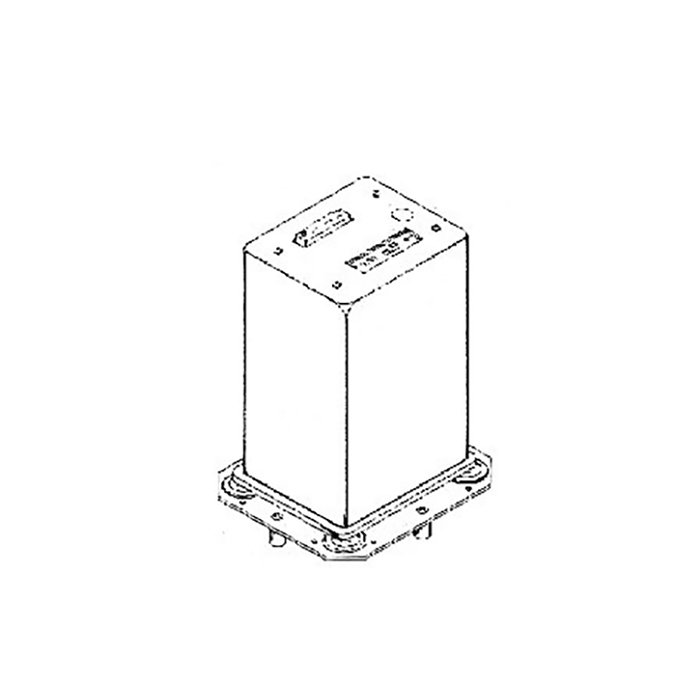

Picture of product SG-832C

Part #: 4000869-3201

Model: SG-832C

OEM:

Honeywell

Desc:

Slaved Gyro (28V)

Part Number :



FEATURES

  • Electrically operated directional gyro used in HSD-830 Compass System
  • Provides XYZ heading information and gyro flag (HDG) voltage to IN-831A HSI
  • Provides displacement information to slaving meter
  • Includes fast slave mode operated by an externally mounted switch
  • Provides free slave switch feature
  • Models available that operate on 14 or 28 VDC (see table below)



SPECIFICATIONS
Power Requirements: 14VDC=1.4A or 28VDC=0.75A Weight: 4.3 lbs. max
Warmup Time: 1 minute max Slaving Rate: Normal: 2 deg. per minute; Fast (Automatic): 180 deg. per minute
Dimensions: 5.25"W x 4.37"L x 6.56"H





Part Number: Description:
4000869-3201 28VDC version, Slaved Gyro
4000869-3202 14VDC version, Slaved Gyro



4000869-3201
- Slaved Gyro (28V)
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

For more information, please refer to these other Exchange FAQs
