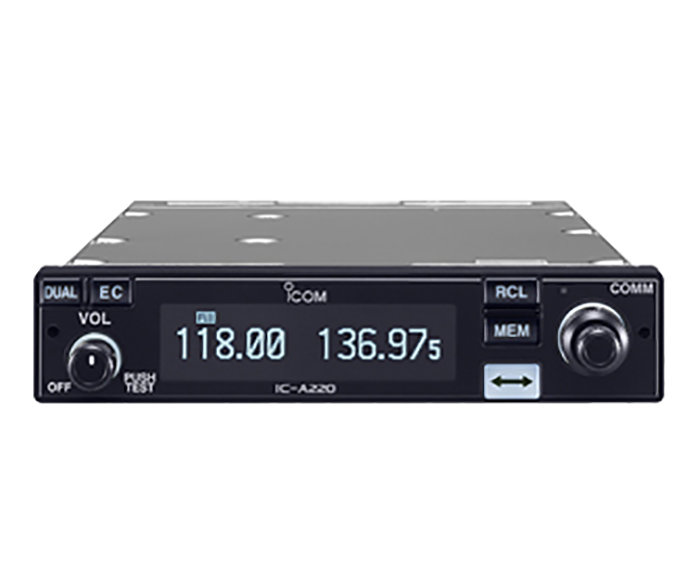

Picture of product IC-A220M

Part #: IC-A220M

OEM:

Icom

Desc:

Air to Ground Panel Mount Transceiver

Part Number :


IC-A220
FEATURES
  • Automatic squelch function detects the signal level and automatically adjusts the squelch level
  • Built-in voice activated intercom function allows pilot and co-pilot to talk via the headset
  • Connect the A220 to an external GPS
  • Built-in DC-DC converter accepts a 12/24V DC power source
  • Automatic weather channel scanning and receive
  • Dualwatch and priority watch functions
  • One touch access to 121.5 MHz emergency frequency
  • Side tone function for monitoring your voice with headset
  • ANL (Automatic noise limiter) function reduces pulse type noise
  • Remote control capability
  • Dial lock and panel lock
  • Time-out-timer
  • Slim 34mm (1.34 inch) height can be installed in a limited panel space
  • D-Sub 25-pin industry standard connector for easy installation
  • Two types of menu mode; settings menu and configuration menu
SPECIFICATIONS
Output power: 8W FREQUENCIES: 118.000-136.992MHz plus 161.650-163.275 weather channel
channel spacing: 8.33/25kHz CHANNELS: 20 regular, 50 group, 10 GPS, 10 weather & 20 auto stack memory
lcd display: OLED mount option: Mobile mount of mount in power supply



EXT SP: 8Ω Headset (side tone): 500Ω
IC-A220M
- VHF Comm, Vehicle Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
