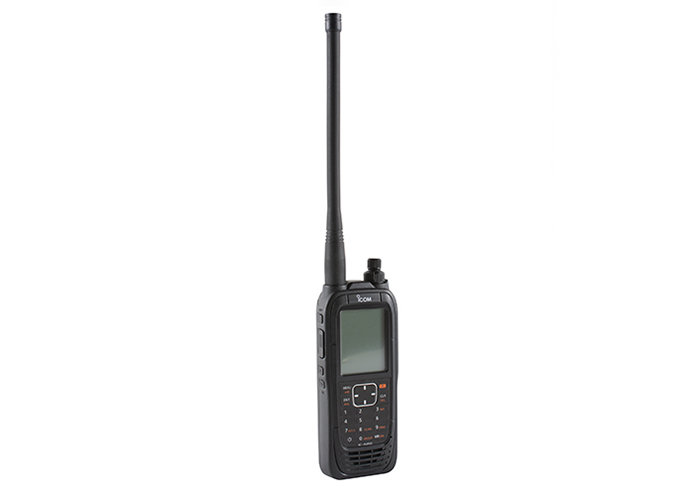

Part #: | IC-A25C |
---|---|
Model: | IC-A25C |
Desc: | Handheld Comm Tranceiver (8.33, 6W, GPS) |
OEM: | Icom |
NSN: | 5820-01-672-6582 |
---|---|
Sched-B: | 8525203030 |
ECCN: | 5A991 |
Cage Code: | 62526 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
frequency: | Tx: 118.000-136.992 MHz Rx: 118.000-136.992 MHz Rx Weather: 161.650-163.275 MHz |
number of memory channels: | 300 channels/15 groups |
channel spacing: | 25/8.33 kHz | type of emission: | 6K00A3E, 5K60A3E, 16K0G3E (Weather) |
power supply requirement: | 7.2 V DC (BP-288), 11.0 V DC (External DC Jack) | current drain (approx.): | Tx High: Less than 1.8 A Rx Max: Less than 500 mA 90 mA typ. (GPS, Bluetooth, Light: OFF) |
antenna impedance: | 50 Ω | Operating temperature range: | −10 °C to +60 °C; −14 °F to +140 °F |
Dimensions: | 2.3" × 5.8" × 1.3" | Weight (Approx.): | 12.0 oz (with BP-288) |
Output power: | @7.2 Vdc: 6.0/1.8 W typical (PEP/carrier) | Audio harmonic distortion: | Less than 10% (at 60% modulation) |
Hum and noise ratio: | More than 35 dB | Spurious emissions: | More than 46 dB (Except operating frequency ±62.5 kHz in 25 kHz channel spacing.) (Except operating frequency ±20.825 kHz in 8.33 kHz channel spacing.) |
Frequency stability: | ±0.4 kHz | Intermediate frequencies: | 46.35 MHz/450 kHz (1st/2nd) |
Sensitivity: | COM (6 dB S/N): Less than 0 dBμ WX (12 dB SINAD): Less than -8 dBμ |
Squelch sensitivity: | @ threshold: Less than 0 dBμ (AM), Less than -5 dBμ (FM) |
Spurious response: | More than 60 dB (AM), More than 30 dB (FM) | Hum and noise: | More than 35 dB (at 30% modulation) |
Audio output power: | More than 350 mW typ. (8 Ω load/60% modulation at 10% distortion) | Ext. speaker connector: | 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω |
NSN: 5820-01-672-6582
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
For Icom aviation radios, there are currently (2018) three service centers that can repair the radios. Please see this link for information: http://www.icomamerica.com/en/support/repair/default.aspx
