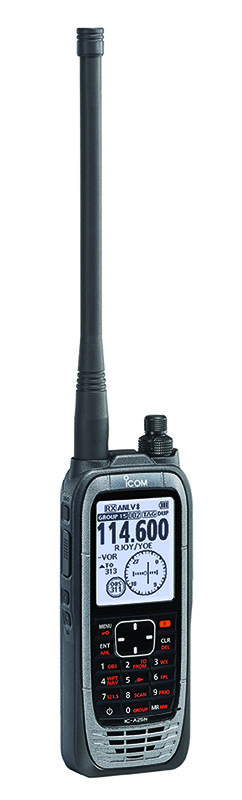

Part #: | IC-A25N |
---|---|
Model: | IC-A25N |
Desc: | Handheld Transceiver |
OEM: | Icom |
NSN: | |
---|---|
Sched-B: | 8525203030 |
ECCN: | 5A991 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
Frequency Range: | Tx: 118.000-136.992 MHz Rx: 108.000-136.992 MHz Rx Weather: 161.650-163.275 MHz |
Channel spacing: | 25/8.33 kHz |
Type of Emission: | 6K00A3E, 5K60A3E, 16K0G3E (Weather) | Power Supply requirement: | 7.2 Vdc (BP-288), 11.0 Vdc (External DC Jack) |
Current Drain (approx.): | Tx High: Less than 1.8 A Rx Max. Audio/Stand-by: Less than 500 mA/90 mA typ. (GPS, Bluetooth®, Light: OFF) |
Antenna impedance: | 50 Ω |
Operating temperature: | -10°C to +60°C | Dimensions: | 2.3" W × 5.8" H × 1.3" D |
weight: | 13.6 oz (with antenna and BP-288) | Output power @ 7.2 Vdc: | 6.0/1.8 W typical (PEP/carrier) |
Audio harmonic distortion: | Less than 10% (at 60% modulation) | Ham and noise ratio: | More than 35 dB |
Spurious emissionS: | More than 46 dB | frequency stability: | ±0.4 kHz |
Intermediate frequencies: | 46.35 MHz/450 kHz (1st/2nd) |
Sensitivity: |
NAV/COM (6 dB S/N): Less than 0 dBμ WX (12 dB SINAD): Less than –8 dBμ |
Squelch sensitivity (at threshold): | Less than 0 dBμ (AM), Less than –5 dBμ (FM) | Spurious response: | More than 60 dB (AM), More than 30 dB (FM) |
ham & Noise: | More than 35 dB (at 30% modulation) | audio output power: | More than 350 mW (8 Ω load/60% modulation at 10% distortion) |
Ext. speaker connector: | 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
