Part #: | 1503-24-EN |
---|---|
Model: | 1503-24-EN |

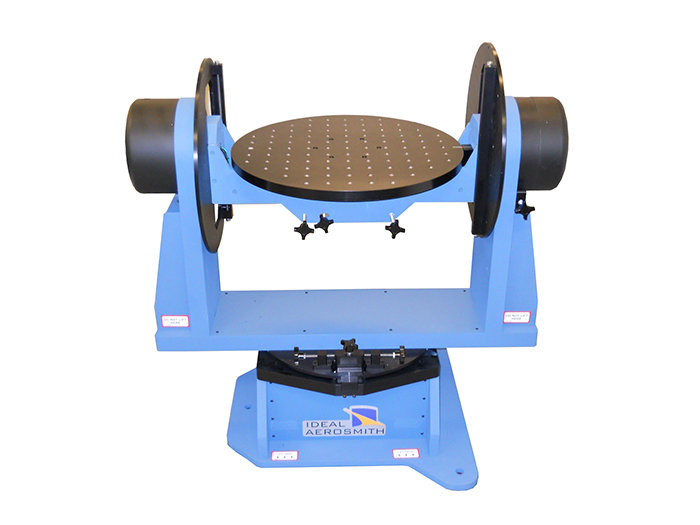

Desc: | Three-Axis Manual Positioning Table |
OEM: | Ideal Aerosmith |
NSN: | |
---|---|
ECCN: |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
1503-24-EN
FEATURES
SPECIFICATIONS
Overall Table Dimensions (mm): | 43.8 (1,113) wide x 28.2 (716) deep x 51.8 (1,316) high | Approximate Table Weight, lbs (kg): | 625 (283) |
Axis Arrangement: | Vertical Outer, Middle Orthogonal to Outer, Inner Orthogonal to Middle | PayLoad Capacity, lbs (kg): | 150 (68) Centered |
Table Top Diameter (mm): | 24 (610) | Surface Flatness, inches: | .005 inch TIR |
Materia: | Aluminum | Hole Pattern, inches (mm): | ¼ - 20 tapped holes on a 2 inch (50 mm) grid pattern |
Surface Finish: | 32 RMS | Axis Brake and Adjustment: | Manual operation with fine adjustment Encoder/Position digital display |
Height of Tabletop, inches (mm): | 36 (914) nominal (Varies with adjustment of leveling feet) | Power Requirement: | Standard: 115V, 50/60 Hz, 0.5 A Optional: 230 VAC, 50/60 Hz, 0.25 A |
Size, inches (mm): | 7.24 (184) high x 19 (483) wide x 17.95 (456) deep | Leveling Range: | ±1 Degree |
Face panel size, inches (mm): | 6.97 (177) high x 19 (483) wide | Weight, lbs (kg): | 35 (15.8) |
Axis brake adjustment range, deg: | Inner Axis Unlimited ± 0.5, Middle Axis ±0.5 ± 185 , Outer Axis ± 185 ± 0.5 | Range, deg: | Inner Axis (Unlimited) 0.000 to +359.999, Middle Axis -185.000 to +185.000, Outer Axis -185.000 to +185.000 |
Accuracy, arc min: | Inner Axis (Unlimited) ± 1, Middle Axis ± 1, Outer Axis ± 1 | Resolution, deg: | Inner Axis (Unlimited), Middle Axis 0.001, Outer Axis 0.001 0.001 |
Repeatability, arc sec: | Inner Axis (Unlimited) ± 30, Middle Axis ± 30, Outer Axis ± 30 | Axis Wobble, arc min: | Inner Axis (Unlimited) ± 1.2, Middle Axis ± 1.2, Outer Axis ± 1.2 |
Orthogonality between consecutive axes, arc min: | ± 1.2 |
Part Number: | Description: |
---|---|
1503-24-EN | Three-Axis Manual Positioning Table |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
