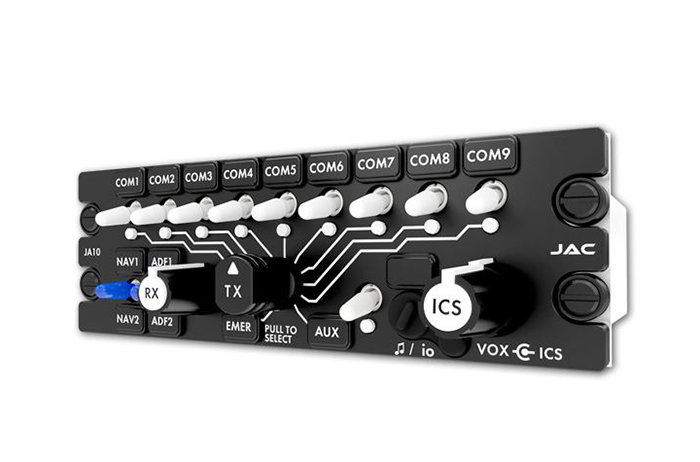

Picture of product JA10

Part #:

Model: JA10

OEM:

Jupiter Avionics

Desc:

Audio Controller

Part Number :



JA10


FEATURES
  • Audio Controller designed to meet the increasing radio communications requirements for operators, with a capability to control up to ten transceivers
  • Up to 8 users
  • Field configurable settings
  • Field replaceable legends
  • Adjustable output and input levels
  • Balanced ICS, CVR, & transmit mic outputs
  • Adjustable CVR output level
  • Front panel music input
  • 5, 14 and 28 Vdc lighting voltage selection
  • Music muting
  • Individual mic. gating
  • Tx capability for 4 users
  • Transmit select annunciators
  • ICS PTT for all user



SPECIFICATIONS

TRANSCEIVERS: 10 Comms weight: TBD
electrical power: Lighting, 28 Vdc @ (1A) max <10mA @ 5, 14, 28 Vdc operating temperature: -45 C to +70 C
Survival temperature: -55 C to +85 C altitude: 50,000 ft max
humidity:  95% shock: 6g (any axis)
TSO COMPLIANCE: Contact JAC for TSO status HEADPHONE: 250 mW into 600 ohms
installation kit: INST-JA10 NUMBER OF HEADSETS: 8 users

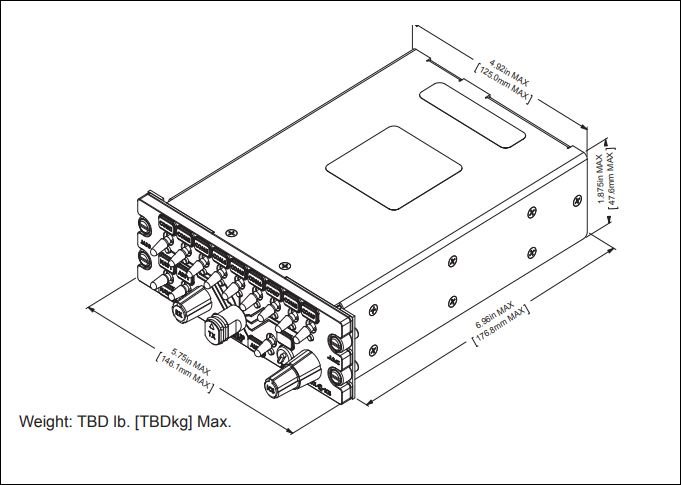

RECEIVER INPUT: 4 Receivers + 3 Direct, 2 Music Inputs, 1 ICS Tie dimensions: H (1.875 in /47.63 mm Max ) W/front(5.75 in /146.1 mm Max) W/rear (5.00 in/127.0 mm Max)

Part Number: Description:
ja10-001 Eight User-10 Transceivers Audio Controller
JA10-N01 Eight User-10 Transceivers Audio Controller - NVG
JA10-070 Eight User-10 Transceivers Audio Controller - Volume Controls
JA10-N70 Eight User-10 Transceivers Audio Controller - Volume Controls - NVG





JA10001

JA10-001
- Eight User, 8 Transceiver Audio Controller
Price Condition Status
$8,430.00 NEW OUTRIGHT REQUEST LEAD TIME
JA10-070
- Audio Controller with RX Volume Controls
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA10-N01
- Eight User, 10 Transceiver Audio Controller - NVG
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA10-N70
- Eight User, 10 Transcevier Audio Controller - NVG
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
