Model: JA30

Jupiter Avionics

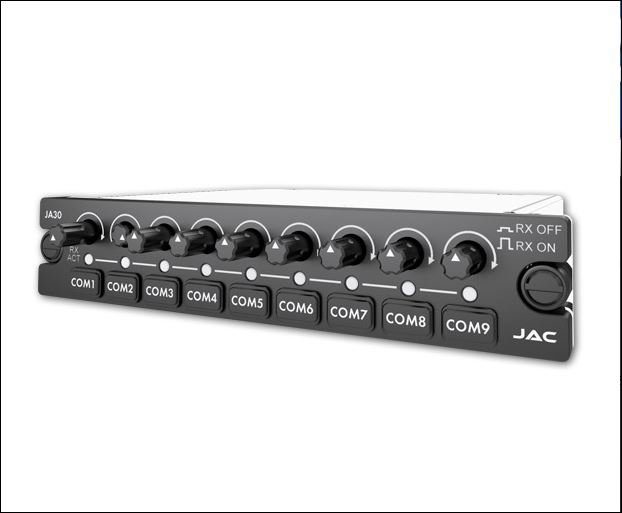

product image
Part Number :
Jupiter Avionics
JA30

FEATURES
  • The JA30-001 Volume Control panel provides individual volume control and on / off selection for up to nine audio channels
  • The volume knobs provide the push on / push off facility for each audio channel
  • A passive emergency mode provides a direct connection between audio input and output for two channels
  • Each channel has a receive signal detection indicator and all selected audio channels are summed to a composite output
  • Compact, lightweight design
  • Field replaceable front panel legends
  • Legends dimmable from the 28 Volt lighting bus
  • Normal and Emergency mode

SPECIFICATIONS

oPREATING TEMPERATURE: -40 C to +70 C sURVIVAL TEMPERATURE: -55 C to +85 C
ALTITUDE: 50,000 ft. max HUMIDITY: 95%, 48 hrs.
shock: 20 g (any axis) tso compliance: Contact JAC for TSO status
installation kit: INST-JA84 ELECTRICAL POWER: 28 Vdc @ 130 mA typical
Part Number audio junction panel Description
ja30-001 See details above
ja30-n01 See details above

JA30-001
- Volume Control Panel
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT

SEA Repair Capabilities: No

JA30-N01
- Volume Control Panel - NVG
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT

SEA Repair Capabilities: No

There are no Frequently Asked Questions at this time. Please contact us at questions@seaerospace.com if you have any questions for us to answer.
