Part #:

Model: JA31

OEM:

Jupiter Avionics

Part Number :
Jupiter Avionics

JA31



FEATURES

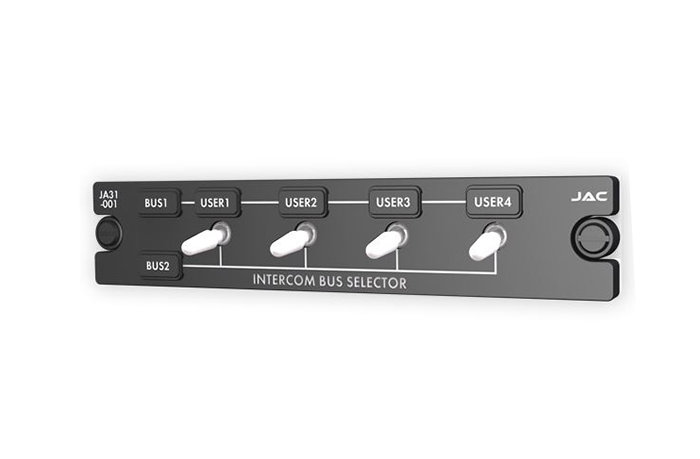

  • The JA31-001 Intercom Bus Selector provides the aircrew with the ability to manage the intercom between audio controllers in the aircraft
  • Using the front panel switches, three or four audio controllers’ ICS TIE lines are connected to either of two intercom buses which allows individuals to be isolated, or for different intercom talk groups
  • Impedance load matching is provided so that ICS TIE line audio levels are maintained
  • NO aircraft power required • Interchangeable front panel legends
  • Pin compatible with industry standard
  • Legends dimmable from the aircraft lighting bus
  • NVIS compatible removable legends
  • Fully pin and functionally compatible with the JA31-001



SPECIFICATIONS

oPREATING TEMPERATURE: -40 C to +70 C sURVIVAL TEMPERATURE: -55 C to +85 C
ALTITUDE: 50,000 ft. max HUMIDITY: 95%, 48 hrs.
shock: 20 g (any axis) tso compliance: Contact JAC for TSO status
installation kit: INST-JA84 ELECTRICAL POWER: None
WEIGHT: 0.46 lbs (0.21 kg ) Max.
Part Number:  Description:
ja31-001 Intercom Bus Selector
ja31-n01 Intercom Bus Selector NVG

JA31-001
- Intercom Bus Selector
Price Condition Status
$1,055.00 NEW OUTRIGHT REQUEST LEAD TIME
JA31-N01
- Intercom Bus Selector - NVG
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
PLEASE NOTE - Publications are for Reference Only
