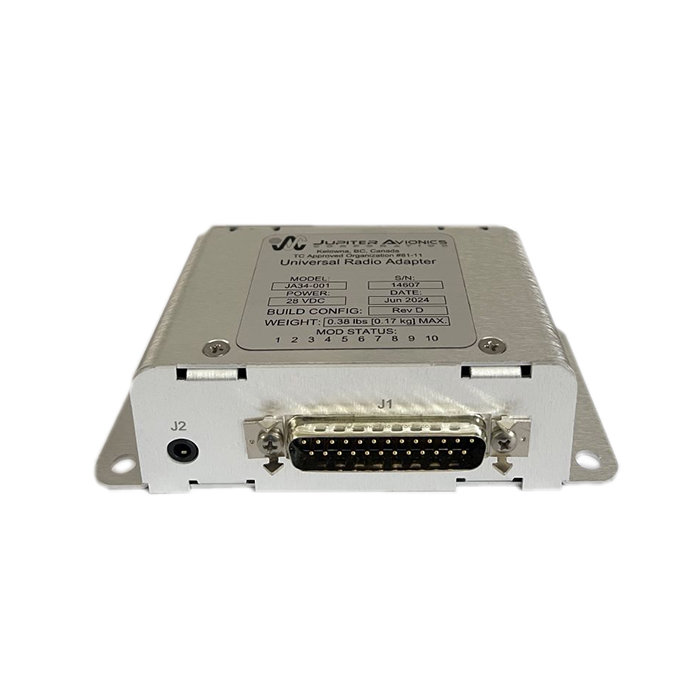

Picture of product JA34

Part #:

Model: JA34

OEM:

Jupiter Avionics

Desc:

Universal Radio Adapter

Part Number :



JA34



FEATURES

  • Universal radio adapter
  • Allows the aircraft audio management system access to non-aviation radios
  • By using Windows® based application (ProCS™), configuration settings internal to the JA34-001 may be changed via a 3.5mm jack, even after installation
  • BT version includes Bluetooth transceiver to support connectivity with Bluetooth-enabled devices
  • BT version allows JA34 to connect the aircraft audio panel to a Bluetooth audio source
  • Field configurable settings
  • Floating key lines
  • Floating audio lines
  • Adjustable microphone amplifier
  • Sidetone amplifier
  • RX amplifier

SPECIFICATIONS
dimensions: 4.50" L x 2.40" W x 1.25" H weight: 0.38 lb
electrical power: 28 Vdc @ 130 mA typical operating temperature: -40°C to +70°C
Survival temperature: -55°C to +85°C altitude: 50,000 ft max
humidity: 95%, 48 hrs shock: 20g (any axis)
tso compliance: CAN TSO-C139 (pending) Installation kit: INST-JA34
Part Number: Description:
ja34-001 Universal Radio Adapter
ja34-BT1 Universal Radio Adapter, with Bluetooth Transceiver



JA34-001
- Universal Radio Adapter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA34-BT1
- Universal Radio Adapter w/ Bluetooth Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
