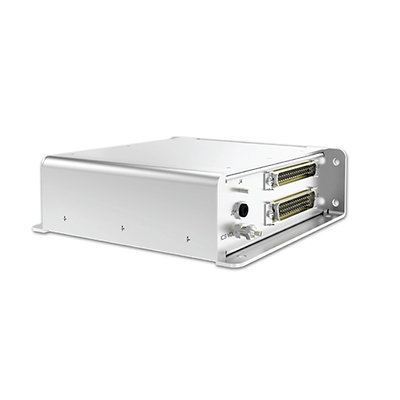

Picture of product JA95-R04

Part #: JA95-R04

OEM:

Jupiter Avionics

Desc:

Audio Controller

Part Number :
Jupiter Avionics
JA95-R04

FEATURES
  • The JA95-R04 audio controller is a compact, lightweight unit that incorporates the latest technology
  • The unit will expand one headset position to four headsets or will connect 7 headsets to an ICS TIE line
  • By using a Windows® based application (ProCS™), configuration settings may be changed via a 3.5mm jack, even after installation in the aircraft
  • Up to 7 users
  • Field configurable settings
  • Stuck microphone time-out
  • Adjustable TX mic output and receive input levels
  • Balanced ICS, microphone output
  • Music muting
  • Individual microphone gating
  • ICS PTT & TX PTT capability for 4 users
  • ICS Volume Control Adjustable
  • ICS TIE MUTE
  • Direct Audio Input
  • External VOX Control
  • ICS TIE Mute
SPECIFICATIONS
ics tie: 340 mV with up to 3 ICS TIE loads 1.2 V with up to 7 ICS TIE loads 2.5 Vrms into 600 Ohms Transceivers or Headset Expansion: 1 Transceiver or 1 headset
Receiver Input: 1 Receiver + 1 Direct, 2 Music Inputs Number of Headsets: up to 7 users
Temperature : (Operationa -45 °C to +70 °C), (Survival -55 °C to +85 °C) Altitude: 50,000 ft. max
Humidity: 95% Shock: 6g (any axis)
Headphone: 100 mW into 600 ohms TSO Compliance: FAA TSO C139 & TC CAN-TSO C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX) (BXX)]AZ[ZC][RR]H[A3J33] XXXX Installation Kit: INST-95R04
weight: 1.68 lb. [0.77 kg] Max. Electrical Power: 14 or 28 Vdc @ (1.4 to 0.7A) max
Part Number Description expander
JA95-R0A ICS / Headset Expander

JA9504
Serial # 13609
Condition NEW
Mods -
Tag Date 02/27/24
Shop Jupiter Avionics Corporation
Warranty 1 Year
JA95-R04
- ICS / Headset Expander
Price Condition Status
$2,795.00 NEW OUTRIGHT 1 IN STOCK
