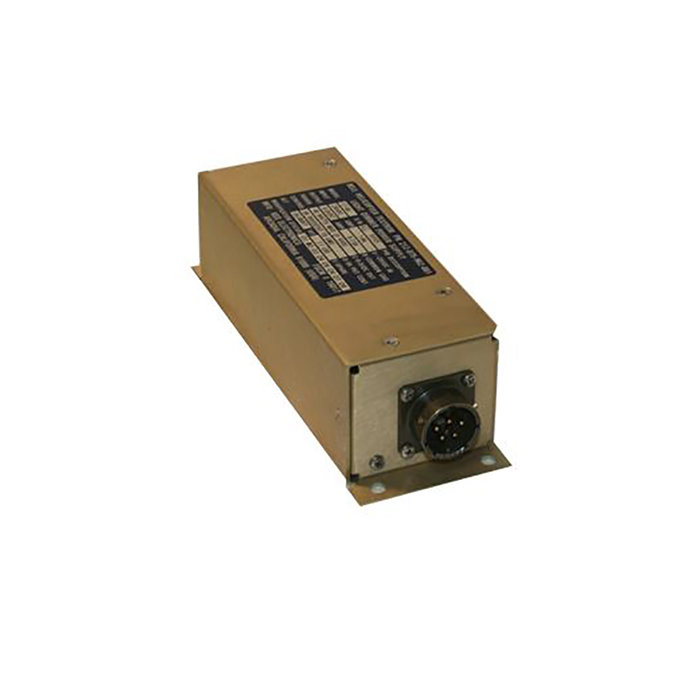

Picture of product BC28
Part #: BC28
Model: BC28
Desc: Regulated DC to DC Power Converter
OEM: KGS
Part Number :







FEATURES

  • Pulse width modulated DC to DC converter that provides regulated output power
  • Primarily designed to charge or trickle charge Ni-Cad, lead acid and jell cell batteries
  • Charging voltage and current limiting point is adjustable
  • Provides an output to indicate "charged" or "charging" state.
  • Positive logic and regulation for output overvoltage protection.
  • Output current limit is adjustable via an internal trim pot.
  • Designed to meet various portions of MIL-Std-704 notice 3,  Mil-Std 202 and Mil-T-5422F class 1T



SPECIFICATIONS

Input Voltage: 28Vdc nom., 20 to 36Vdc Normal Range Input Current 3.0 amps @full load
VA Rating: 70VA Weight: 1.5 LBS (.683 kg)
Output Current: 2.5 +- .5 amp Output Voltage: 28+- 2Vdc
Size: 2.3" X 2.3" X 6.8" (5.7 X 5.7 X 17.3 cm) Altitude: 50,000FT
Output Current: Output current limited to approximately 125% of rating Output Ripple: 25mVp-p
Temperature: -55°C to +71 °C Regulation: 2% for line, 2% for load and 2% for temperature
Efficiency: 85% Connector: Mates with MS3106A14S-5 S
Finish: Gold iridite per MIL-C-5541 Class 1A Protection (OV): Output voltage is limited to approximately 125% of rating even during an internal failure



Part Number: Description:
BC28 Regulated DC to DC Power Converter






















BC28
- Regulated DC to DC Power Converter
