Part #: | FJ20 |
---|---|
Model: | FJ20 |

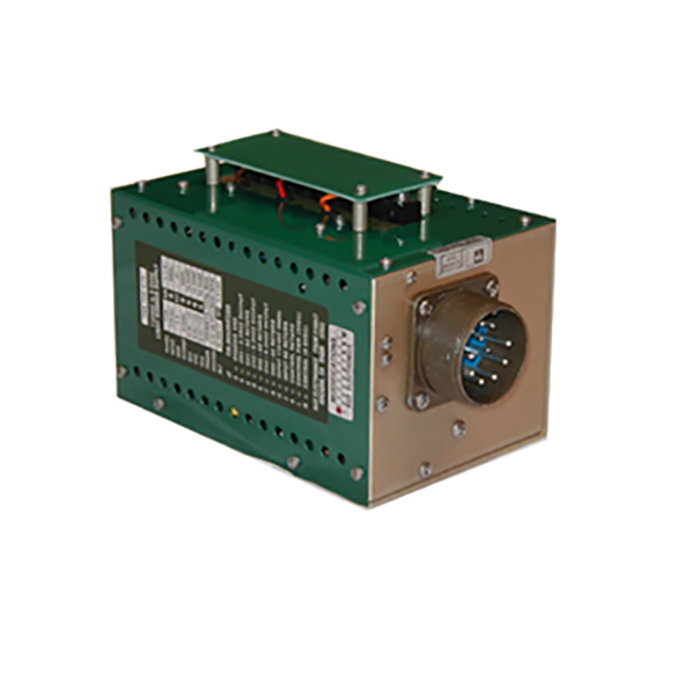

Desc: | Inverter/Converter 400HZ |
OEM: | KGS |
NSN: | |
---|---|
ECCN: |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
SPECIFICATIONS
Input Voltage: | 115 Vac 400 Hz nom., 105 to 125 Vac | Weight: | 5.3 LBS (2.4 kg) |
Output Voltage: | 0-5 Vac 400 Hz regulated | Frequency: | 400 Hz ± 2% |
Output Current: | 0-40 Amps continuous | Regulation: | 7% for load, 2% for line and 3% for temperature |
Power: | 200 Watts | Power Factor: | Unity (resistive) |
Temperature: | -55°C to +71 °C | Altitude: | 55,000FT |
DIMENSIONS: | 4.60 H x 4.42 W x 6.47 L inches (116.8H x 112.3 W x 164.3 L mm) | Connector: | Mates with MS3106A28-9S |
Part Number: | Description: |
---|---|
FJ20 | Inverter/Converter |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
