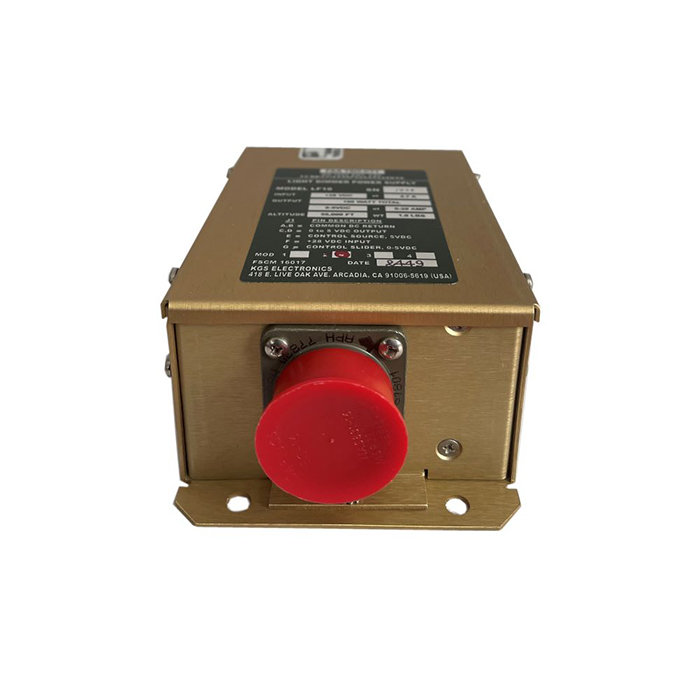

Picture of product LF-10
Part #: LF-10
Model: LF-10
Desc: Light Dimmer
OEM: KGS
NSN: 6625-00-008-3955
Sched-B: 8504409585
ECCN: 3A999
Cage Code: 16017
Part Number :



LF-10

FEATURES

  • LF10 is a pulse width modulated dc to dc converter that provides regulated 0 to 5 Vdc power up to 20 amperes
  • Output voltage is varied by a slider voltage 0-5 Vdc applied at pin D from a remote control potentiometer 5K ohm 1/2 watt to ground or directly from a 0-5 Vdc source
  • Internal trim pot is provided to adjust the output voltage within the range from 4.9 Vdc to 5.25 Vdc at its full clockwise position of the external pot
  • Circuit protection includes low input voltage shutdown
  • High input voltage shutdown
  • Output over voltage limit and output short circuit current limit.



SPECIFICATIONS

Input Voltage: 28 Vdc NOM., 18 to 32 Vdc Weight: 1.0 LBS (454 grams)
Output Voltage: 0-5 Vdc regulated COMPLIANCE: FAA TSO-C71
Output Current: 0-20 Amps continuous Regulation: 3% for load, 2% for line and 3% for temperature
Altitude: 55,000FT Temperature: -55° C to +71° C
DIMENSIONS: 2.00 H x 3.38 W x 5.25 L inches, 50.8 H x 85.8 W x 133.3 L mm Efficiency: 75% typical



Output Voltage:
Part Number: Description:
Lf-10 0-5 Vdc High Power Light Dimmer







Serial # 3994
Condition NEW
Mods -
Tag Date 12/05/24
Shop KGS Electronics
Warranty 1 Year
Serial # 2042
Condition SV
Mods 1
Tag Date 10/10/24
Shop Avionik Straubing
Warranty 6 Months
LF-10
- Light Dimmer

NSN: 6625-00-008-3955

Price Condition Status
$1,895.00 NEW OUTRIGHT 1 IN STOCK
$1,395.00 SV OUTRIGHT 1 IN STOCK
