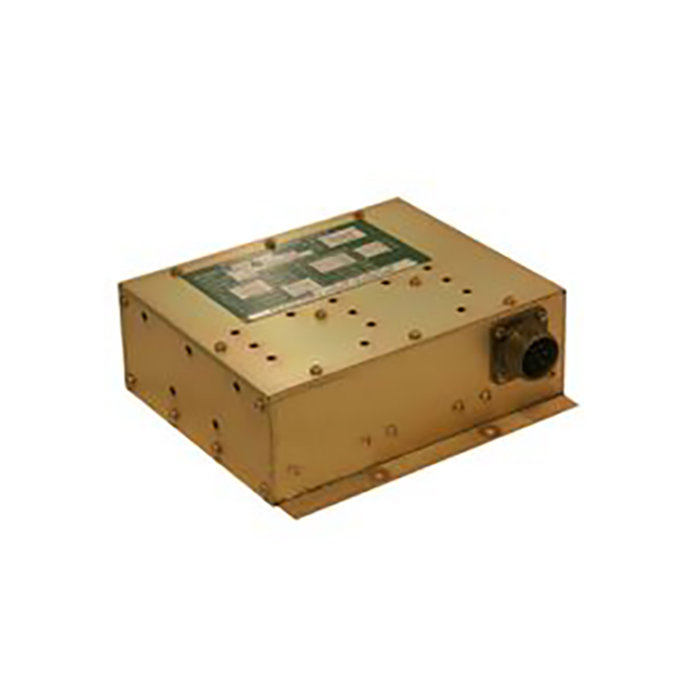

Picture of product LT-253A-400

Part #: LT-253A-400

OEM:

KGS

Desc:

Regulated AC to DC Power Converter

Part Number :

 KGS Electronics



FEATURES

  • LT-2XX-400 Series is a pulse width-modulated AC to DC converter that provides regulated DC power output
  • LT-2XX-400 Series is primarily designed to control the light intensity of incandescent bulbs in vehicle  lighting systems
  • State of the art design for regulation and positive logic for output overvoltage protection
  • Other LT-2XX-400 Series available in various output voltage and power ratings in the same package, or special units can be provided for various output combinations
  • A panel mount trim pot is provided for the voltage control series to control 0-5 VDC output via 0-3 to 0-5 VDC
  • A test jack is provided to monitor output voltage
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202 and MIL-T-5422F class 1A
  • The Model LT-2XX-400 Series is serviceable, small and lightweight (42 watts per pound and 1.7 watts per cubic inch)



SPECIFICATIONS

Input Voltage: 115 VAC ± 10% @ 400 Hz Regulation: 2% for line, 2% load and 2% temperature
Weight: 3.6 lbs. (1634 grams) SIZE: 6.5" L x 6.7" W x 2.4" H. (16.5 cm L x 17 cm W x 6 cm H)
Temperature: -55°C to +71°C (sufficient cooling required @ +71°C ambient) Altitude: 55,000 Feet
Output Ripple: 25 mVp-p or less Output Voltage: Adjustable with external 5K ohm, 1/2W rheostat or voltage 0-3 VDC to 0-5 VDC
Max. Power Rating (watts): 75 Input Voltage (VAC) @ 400 HZ: 105-125
Input Current (ARMS) @ FL @ 115 VAC: 1.2  Output Voltages DC two parallel: 0 to 5
Output Current (ADC) Total: 0-15



Part Number: Description:
 LT-253A-400 Regulated AC to DC Power Converter





LT-253A-400
- Regulated AC to DC Power Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
