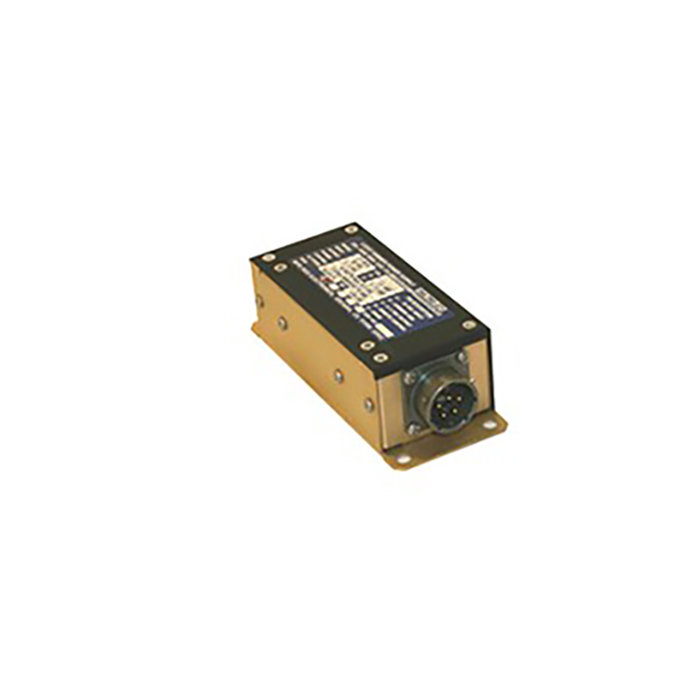

Picture of product LT-45D
Part #: LT-45D
Model: LT-45D
Desc: 0-28VDC/3.6AMP/100W Light Dimmer
OEM: KGS
NSN: 6130-01-522-5446
Sched-B: 8504409580
ECCN: 3A999
Cage Code: 16017
Part Number :



FEATURES
  • Pulse width-modulated DC to DC converter that provides regulated output power
  • Primarily designed to control the light intensity of incandescent bulbs in aircraft lighting
  • State of the art design for regulation and positive logic for output overvoltage protection (PWM control topology)
  • The LT-45D is serviceable, small and lightweight
  • Maximum output voltage is adjustable with an internal trim pot
  • Designed to meet MIL-STD 704 Cat. B, MIL-STD-810C and MIL-STD-461A
  • Qualified to the FAA technical standards order (TSO-C71) for airborne static DC-DC electrical power converters



SPECIFICATIONS
INPUT VOLTAGE: 28 VDC nom OUTPUT WATTS: 100 W
output voltage regulated: Variable and Regulated OUTPUT RIPPLE: 8 mVpp typ. @ 25°C,25 mVpp maximum

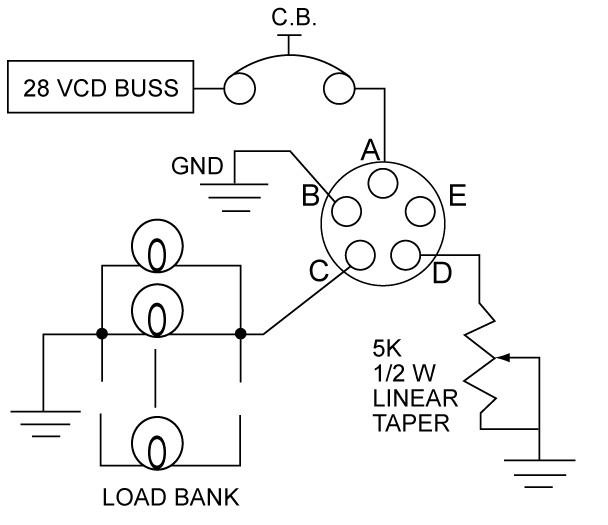

REGULATION: 2% for line, 2% load and 2% temperature OUTPUT CONTROL: Adjustable with external 5k ohm,1/2 W linear pot (rheostat)

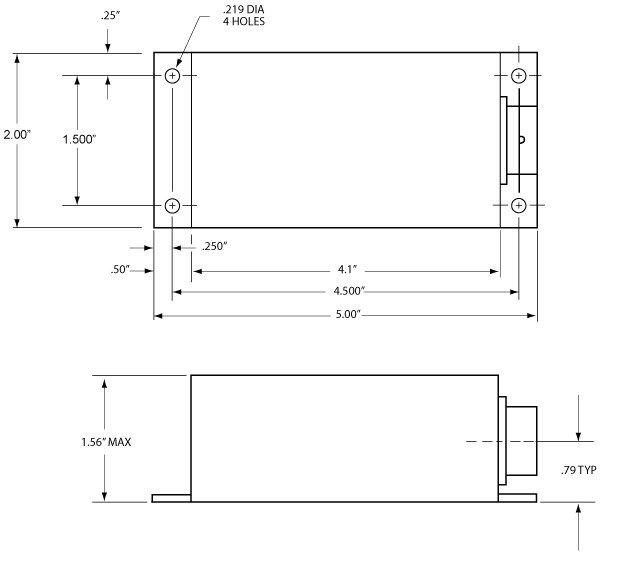

DIMENSIONS: 1.6" H x 2.0" W x 5.0" L., 4.1 cm H x 5.1 cm W x 12.7 cm L WEIGHT: 0.6 lbs. (272 grams)
INPUT CIRCUIT BREAKER: 5-D amp Compliance: FAA TSO-C71
Part Number: Description:
LT-45D  Light Dimmer



Serial # 1156
Condition SV
Mods None
Tag Date 02/28/25
Shop KGS Electronics
Warranty 6 Months
LT-45D
- Light Dimmer Power Supply

NSN: 6130-01-522-5446

Price Condition Status
$1,250.00 SV OUTRIGHT 1 IN STOCK
$1,695.00 NEW OUTRIGHT REQUEST LEAD TIME
