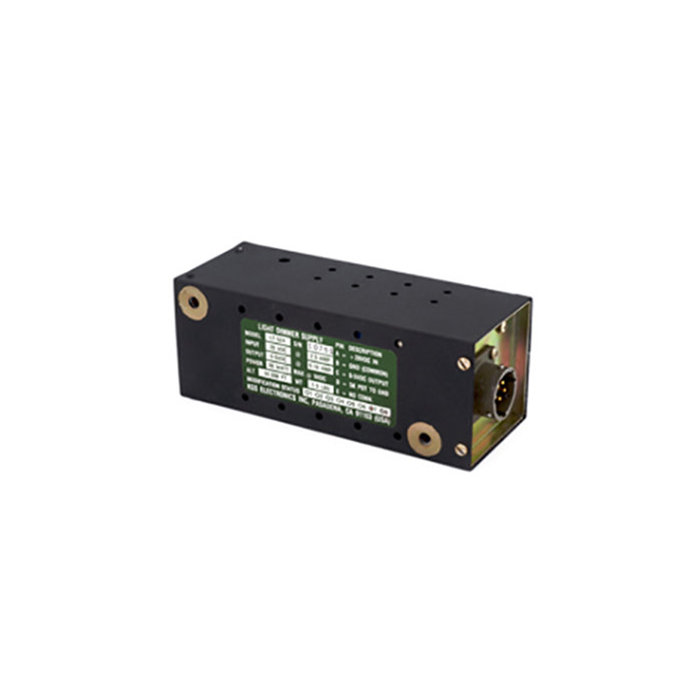

Picture of product LT-52A
Part #: LT-52A
Model: LT-52A
Desc: Power Supply
OEM: KGS
NSN: 5905-01-130-3360
Sched-B: 8504406018
ECCN: 9A991.d
Cage Code: 16017
Part Number :





FEATURES

  • Pulse width-modulated DC to DC converter that provides regulated DC power
  • Transforms an unregulated 28 VDC to a regulated and adjustable DC voltage output via a remote control potentiometer
  • Primarily designed to control the light intensity of incandescent bulbs in aircraft lighting
  • FAA TSO-C71 recognized for airborne applications
  • State of the art design for regulation and positive logic for output overvoltage protection
  • Serviceable, small and lightweight
  • Maximum output voltage is adjustable with an internal trim pot
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202C and MIL-T-5422F class 1A



SPECIFICATIONS
Dimensions: 2.3" H x 2. 3" W x 5.8" L Weight: 1.5 lbs.
Input Voltage: 20 TO 40 VDC Input Current: @20 VDC 3.2 Amp @28 VDC 2.3 Amp
Output Voltage: 0-5 VDC. Adjustable with external 5K ohm, 1/2 W rheostat Output Current: 10.0 amps
Efficiency: 77% Mating plug: KPT-06A-15-5S
Receptacle: PT-02E-14-5P Output Ripple: 25 mvp-p
Altitude: 55,000 ft. Temperature: -55°C to +71°C (sufficient cooling required @ +71°C ambient)
Overload Protection: Input and output current pulse when overload exceeds approximately 125% of rating Overvoltage Protection: Output voltage is limited to approximately 125% of rating eventhough remote control rheostat opens or shorts, or internal failure occurs
TSO: C71
Part Number: Description:
lt-52a Power Supply



Serial # 22021
Condition NEW
Mods -
Tag Date 02/21/24
Shop KGS Electronics
Warranty 1 Year
LT-52A
- Power Supply

NSN: 5905-01-130-3360

Price Condition Status
$1,595.00 NEW OUTRIGHT 1 IN STOCK
