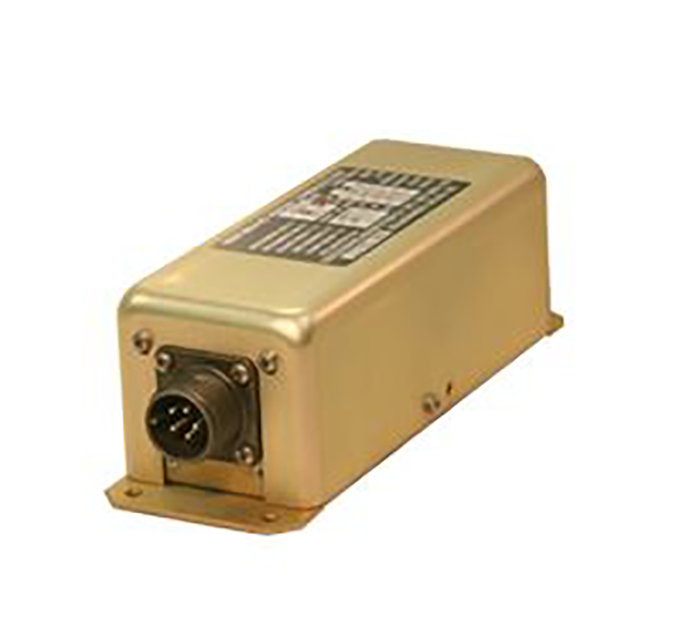

Picture of product LT-71B

Part #: LT-71B

NSN:

6130-01-476-9241

OEM:

KGS

Desc:

Regulated DC/DC Converter

Part Number :


LT-71B
FEATURES
  • Pulse width-modulated DC to DC converter that provides regulated power
  • Transforms an unregulated 28 VDC to a regulated and fixed DC output
  • Primarily designed to supply regulated fixed DC voltage to critical communication, navigation and digital equipment
  • State of the art design for regulation and positive logic for output overvoltage protection
  • Small and lightweight
  • Maximum output voltage is adjustable with an internal trim pot
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202C and MIL-T-5422F class 1A
  • Other voltage control range is available
  • The Model LT-Series is serviceable, small and lightweight (33 watts per pound and 1.7 watts per cubic inch)



SPECIFICATIONS
Dimensions: 2.3" H x 2. 4" W x 6.8" L ( 5.7 cm H x 6 cm W x 17 cm L)  Weight: 1.5 lbs.
Input Voltage (VDC): 26 TO 40 VDC Input Current (VDC) @28 VDC IN: 4.7 amps
Output Voltage: 14 Output Current: 8.0 amps DC
MAx VA Rating: 112 Efficiency: 80
Regulation: 2% for line, 2% load and 2% temperature Output Ripple: 50 mVp-p
Altitude: 55,000 ft. Temperature: -55°C to +71°C (sufficient cooling required @ +71°C ambient)
Overload Protection: Input and output current pulse when overload exceeds approximately 125% of rating Overvoltage Protection: Output voltage is limited to approximately 125% of rating
mating plug: MS3106A14S-5S-X RECEPTACLE: MS3102A14S-5P-X
INPUT VOLTAGE: 28 VDC nom., 20 to 40 VDC PROTECTION (OVERVOLTAGE): Input current foldback and output current limits when overload exceeds approximately 125% of rating



LT-71B
- Regulated DC/DC Converter

NSN: 6130-01-476-9241

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
