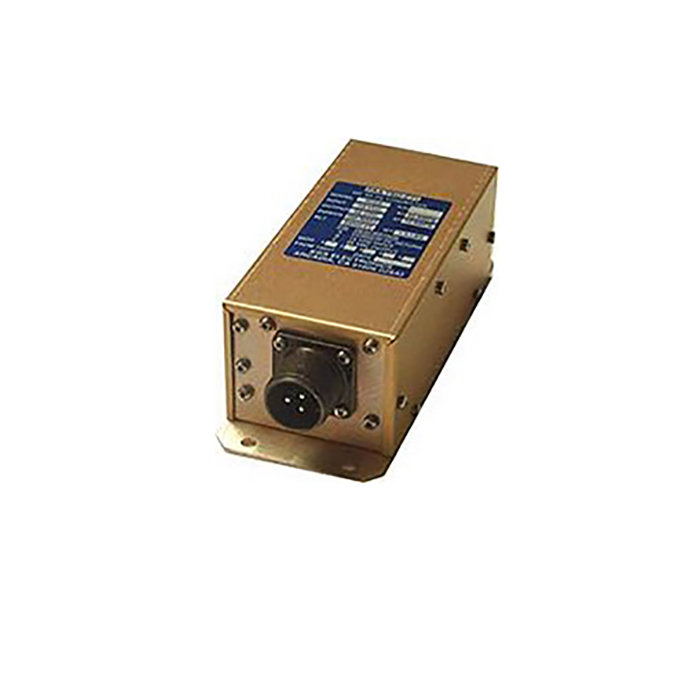

Picture of product RG28

Part #: RG28

NSN:

6130-01-518-9622

OEM:

KGS

Desc:

Regulated DC to DC Converter

Part Number :


RG-28
FEATURES
  • Converts 28 Vdc input voltage to a regulated 14 Vdc output voltage.
  • Capable of delivering 280 Watts continuously at 14 Vdc (20 amperes output)
  • 14 Vdc output is buck converted from the input voltage and therefore the output voltage is not isolated from the input
  • "Synchronous Current Mode Switching" topology with Surface Mount Technology (SMT) is used to realize the power conversion
  • Control circuitry includes use of a popular Synchronous PWM controller for voltage regulation and overload current limit
  • Protection circuitry includes output short circuit current limit
  • Output shuts down when the voltage feedback loop is opened



SPECIFICATIONS
Dimensions: 2.75 W x 6.875 L x 2.24H Weight: 1.2 lbs.
Input Voltage: 28 Vdc NOM., 22 to 32 Vdc Input Current: 10.8 Amps typ at 28 Vdc input & full load
Output Voltage: 14 Vdc regulated Output Current: 0-20 Amps continuous
Efficiency: 92% typical TSO: C71
Regulation: 1% for line, 1% for load and 1% for temperature Cooling: Convection and thermal conduction through the bottom plate (No internal fan)
Altitude: 55,000 ft. Temperature: -55°C to +71°C
Overload Protection: Withstands without damage or degradation loads exceeding 110% to an output short circuit. Unit delivers rated output power upon removal of the overload condition Overvoltage Protection: Under a output short circuit condition, the current is limited to approximately 37.5 Amps



RG28
- Regulated DC to DC Converter

NSN: 6130-01-518-9622

Price Condition Status
$1,565.00 NEW OUTRIGHT REQUEST LEAD TIME
