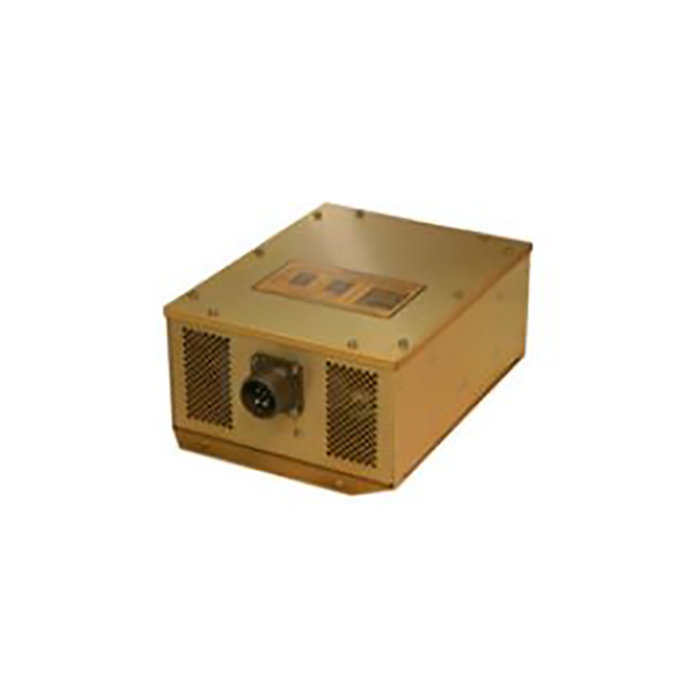

Picture of product RG40
Part #: RG40
Model: RG40
Desc: Regulated DC to DC Converter
OEM: KGS
Sched-B: 8504400018
ECCN: 3A225
Part Number :




FEATURES
  • Solid-state, DC to DC switch-mode converter that converts an input DC voltage (27.5 VDC nominal) to a regulated 13.75 VDC output voltage
  • May be paralleled (external diodes required) if additional power is required
  • Meets TSO-C71 (airborne static DC to DC electrical power converter - for air carrier aircraft)
  • 110% of the rated output power for a period of two hours; 150% of the rated output power for a period of 5 minutes ( 1 min. at 70°C ambient temperature)
  • Without damage or degradation, the converter will withstand a sustained short circuit and provide 200% of the rated output current for a period of one minute



SPECIFICATIONS
Dimensions: 9.50" L x 6.9" W x 3.38" H Weight: 3.5 lbs.
Input Voltage: 22 to 41 VDC (27.5 VDC nominal) Input Current: 18.1 ADC at full load (nominal)
Output Voltage: 13.75 VDC Output Current: 30.0 ADC at full load
Efficiency: 80% minimum Output Ripple: 13.75 mV
Regulation: 1% for line, 1% for load and 1% for temperature Load Transient Response: NL to FL condition: 4.0 Vp undershoot for 5.0 mSec. (nominal) FL to NL condition: 2.0 Vp overshoot for 5.0 mSec. (nominal).
Altitude: 55,000 ft. Temperature: -55°C to +71°C
ENVIRONMENTAL: DO-160 Env. Cat F2XBB (LV) XXXXXXXXXXXX(ZA)XXX LOAD TRANSIENT rESPONSE: NL to FL condition: 4.0 Vp undershoot for 5.0 mSec. (nominal), FL to NL condition: 2.0 Vp overshoot for 5.0 mSec. (nominal)
pROTECTION CIRCUIT (rEVERSE POLARITY): The converter will trip a MIL-C-5809 25 ADC input circuit breaker in the event of reverse polarity input voltage connection SHUTDOWN: The converter will shutdown under the following: Input voltage > 41 VDC(-3 VDC hysteresis) Input voltage < 15 VDC (-2 VDC hysteresis) Output voltage > 16 VDC (-2 VDC hysteresis) Internal temperature > 100°C
