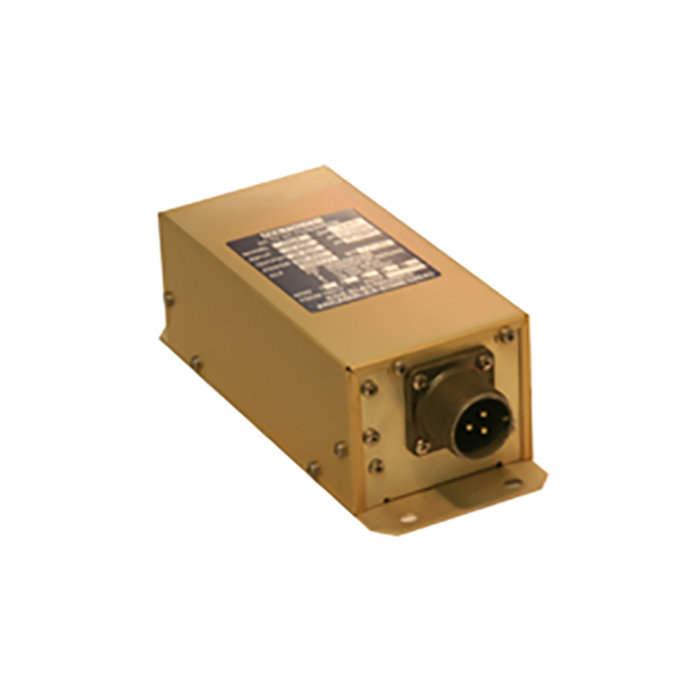

Picture of product RH28

Part #: RH28

NSN:

7025-01-503-4838

OEM:

KGS

Desc:

DC Power Converter (14VDC to 28VDC)

Part Number :


RH28
FEATURES
  • KGS model RH28 converts 14 Vdc input voltage to a regulated 28 Vdc output voltage
  • Capable of delivering 280 Watts continuously at 28 Vdc and up to 10 amperes output
  • Control circuitry includes use of a popular Synchronous PWM controller for voltage regulation and overload current limit
  •  "Synchronous Current Mode Switching"
  • Surface Mount Technology (SMT)
  • Topology design allows a wide input voltage range is possible while delivering highly regulated 28Vdc output power



SPECIFICATIONS

Input Voltage: Normal:  12 to 28 Vdc       Abnormal:  8 to 36Vdc Weight: 1.3 lbs.
Output Voltage: 28 ± 0.5 Vdc regulated for input voltage from 8 to 28 Vdc (Switching Mode) input current of  50 Amps for 5 Sec or until a 25 Amp input circuit beaker trips COMPLIANCE: FAA TSO-C71
Output Current: 0-10 Amps continuous.  15 amps for 5 minute Regulation: 1% for line, 1% for load and 1% for temperature
Power: 280 Watts continuous for input voltage from 12 to 28 Vdc, 420 Watts for 5 minutes at 14 Vdc input voltage Overload (OL): Delivers 110% output power for 2 hours minimum



Output Voltage:
Part Number: Description:
RH28 DC Power Converter (14VDC to 28VDC)





RH28
- DC Power Converter (14VDC to 28VDC)

NSN: 7025-01-503-4838

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
