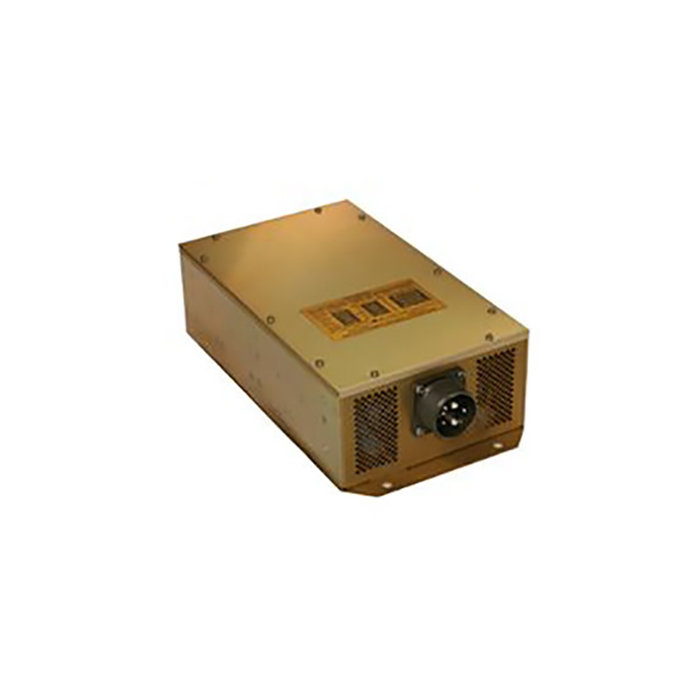

Picture of product SB120

Part #: SB120

NSN:

6130-01-685-4278

OEM:

KGS

Desc:

Static Inverter (28VDC/230VAC 50 Hz)

Part Number :



SB120

FEATURES
  • The SB120 static inverter is lightweight
  • Solid state circuitry to invert a 28 VDC input to either a 115 VAC, 60 Hz or 230 VAC
  • Crystal controlled oscillator for output frequency stability
  • Pulse-width-modulated square to sine wave power conversion scheme for efficient
  • Designed to power laptop computers



SPECIFICATIONS

WEIGHT: 7.7 lb  INPUT CURRENT: 50.0 ADC
INPUT VOLTAGE: 28 VDC (nominal), 20 VDC to 36.5 VDC range Output Voltages: 115 VRMS ±5%
OUTPUT CURRENT: 4.3A RMS OUTPUT FREQUENCY: 60 Hz
OUTPUT POWER: 1200 VA Output Waveform and Phase: sinewave/single phase
Harmonic Distortion: 0.5% (nominal) Power Factor: +0.8 TO -0.8
Efficiency: 87% (nominal) Response Time: 300 µs (no load to full load)
Regulation: 1% line, 1% load, 2.5% temperature Overload Capacity: 110% of rated power for 2 hrs, 150% of rated power for 5 min. (SSA120 = No Overload)
Protection Circuit: The inverter will shutdown under the following conditions: Input voltage > 37.5 ±1 VDC, Input voltage < 18 VDC ±1.5 VDC, Internal high ambient temperature., Short circuit condition (after 2 to 15 Sec)(manual reset) Remote On-Off: Yes
Operating Temperature: -55°C to 71°C (-65°F to 160°F) Altitude: 55,000 ft
Environmental: DO-160C Env. Cat. F3ZBB[ LV] E1XXXXXBXAXXXZXXX Cooling: thermostatically controlled brushless fan (on above 50°C)
Compliance: SS Series Approved under FAA TSO-C73


Part Number: Description:
SB120 KGS Static Inverter (28VDC/230VAC 50 Hz)







Serial # 410
Condition SV
Mods -
Tag Date 01/16/24
Shop KGS Electronics
Warranty 6 Months
SB120
- Static Inverter (28VDC/230VAC 50 Hz)

NSN: 6130-01-685-4278

Price Condition Status
$4,950.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
