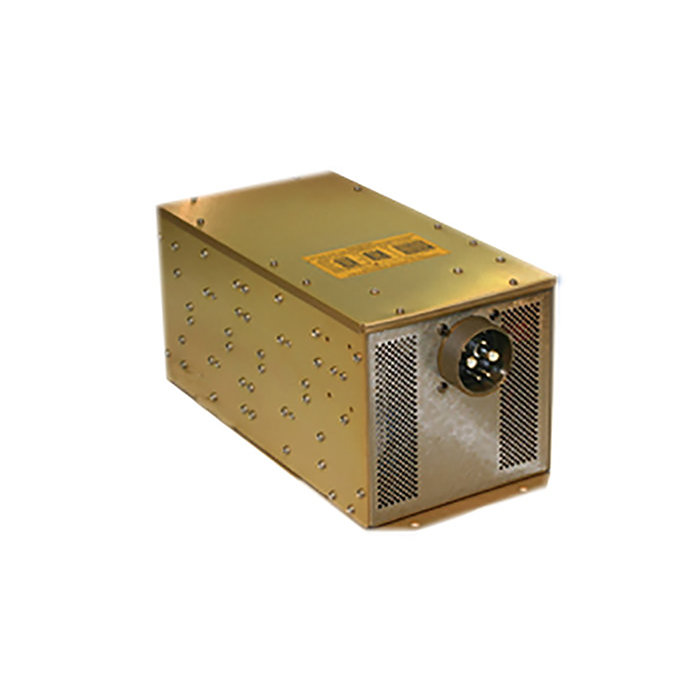

Picture of product SB200
Part #: SB200
Model: SB200
Desc: Static Inverter (28VDC/230VAC 50 Hz)
OEM: KGS
NSN: 5930-01-500-2349
Sched-B: 8504409570
ECCN: 7A994
Cage Code: 16017
Part Number :






FEATURES

  • Solid state circuitry to invert a 28 Vdc input to 115 Vac, 60 Hz or 230 Vac, 50 Hz sine wave output
  • 60Hz SS series is certified to FAA TSO-C73 airborne standards
  • Designed to power laptop computers, audio/video entertainment systems, portable electronics, microwave ovens, coffee makers and medical equipment in airborne
  • Marine and ground mobile applications



SPECIFICATIONS
Dimensions: 7.75"W x 4.00"H x 12.0"L Weight: 17.0 lbs.
Input Voltage: 28 Vdc (nominal), 20 Vdc to 36.5 Vdc Range Input Current: 2.0 Adc (nominal) at NL; 83 Adc (nominal) at FL (2Kva) at 28 Vdc
POWER FACTOR: +0.8 TO -0.8 Wave Form: Sine wave
Output Voltage: 115 VAC (108 TO 120 VAC) Phase: Single
Altitude: 55,000 ft. Temperature: -55 ° C to +71 ° C (-65 ° F to +160 ° F)
EFFICIENCY: 87 % (nominal) OUTPUT FREQUENCY: 60 HZ
Compliance: SS Series Approved under  FAA TSO-C73 Environmental: RTCA DO-160C Env. Cat. F3ZBB[LV]E1XXXXXBXAXXXZXXX
Output Current: 17.4 Amps RMS Response Time: 300 uSec (No Load to Full Load)



Part Number: Description:
SB200 Static Inverter (28VDC/230VAC 50 Hz)



Serial # 370
Condition SV
Mods 10
Tag Date 07/11/24
Shop KGS Electronics
Warranty 6 Months
SB200
- Static Inverter (28VDC/230VAC 50 Hz)

NSN: 5930-01-500-2349

Price Condition Status
$3,450.00 SV EXCHANGE 1 IN STOCK
$8,950.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
