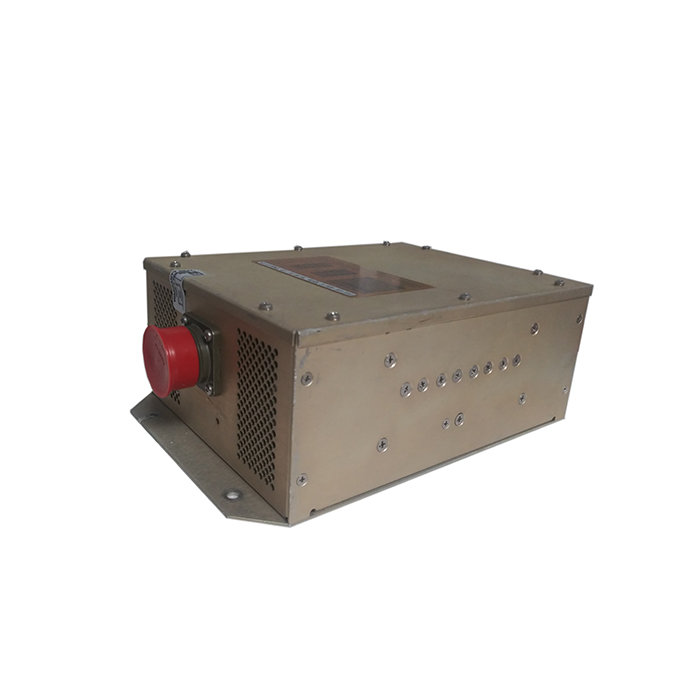

Part #: | SC50 |
---|---|
Model: | SC50 |
Desc: | Static Inverter (28V to 115V, 400 Hz) |
OEM: | KGS |
NSN: | |
---|---|
Sched-B: | 8504409580 |
ECCN: | 3A999 |
FEATURES
SPECIFICATIONS
input voltage : | 28 VDC. (nominal). 20 VDC to 36.5 VDC range |
input current (adc) @ 28 vdc in: | 20.7 ADC at full load. 0.5 ADC at no load |
outPUT power: | (Total) 115 VAC/26: 500 VA total of 115 V & 26 V *500 VA *100 VA |
efficiency: | 87% |
output voltage: | 115 VAC and / or 26 VAC |
phase/waveform: | Single phase & Sinusoidal |
frequency: | 400 Hz ± 1% |
REGULATION: | 1% Line, 1% Load, 2.5% Temp |
power factOR: | +.8 to -.8 |
weight: | 4.9 lbs. (2.22 kg) |
altitude: | 55,000 ft. |
Temperature: | -55°C to +71°C (-65°F to +160°F) |
RESPONSE TIME: | 300 Usec (NL to FL) |
OUTPUT FREQUENCY: | 400 Hz ± 1.0 Hz |
Environmental: | RTCA DO- 160C env. cat. F2ZBB(LV)XXXXXXBXAXXXZXXX |
HARMONIC DISTORTION: | 0.7% (nominal), 3% max |
OVERLOAD CAPACITY: | 110% of rated output power for 2 hrs 150% of rated output power for 5 min |
RTEMOTE ON/OFF: | Yes. Ground Pin E to turn ON |
COOLING: | Thermostatically controlled brushless fan |
COMPLIANCE: | FAA TSO-C73 |
PROTECTION CIRCUITS: | Shutdowns under the following conditions: *Input Voltage >37.5 VDC ±1.0 VDC *Input Voltage < 18.0 VDC ±1.5 VDC *Internal high ambient temperature. *Output short circuit condition |
Part Number | Description |
---|---|
SC50 | Static Inverter (28V to 115V, 400 Hz) |
Serial # | 1388 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 03/04/25 |
Shop | KGS Electronics |
Warranty | 1 Year |
Price | Condition | Status |
---|---|---|
$5,495.00 | NEW OUTRIGHT | 1 IN STOCK |
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
REQUEST | SV EXCHANGE | REQUEST LEAD TIME |
