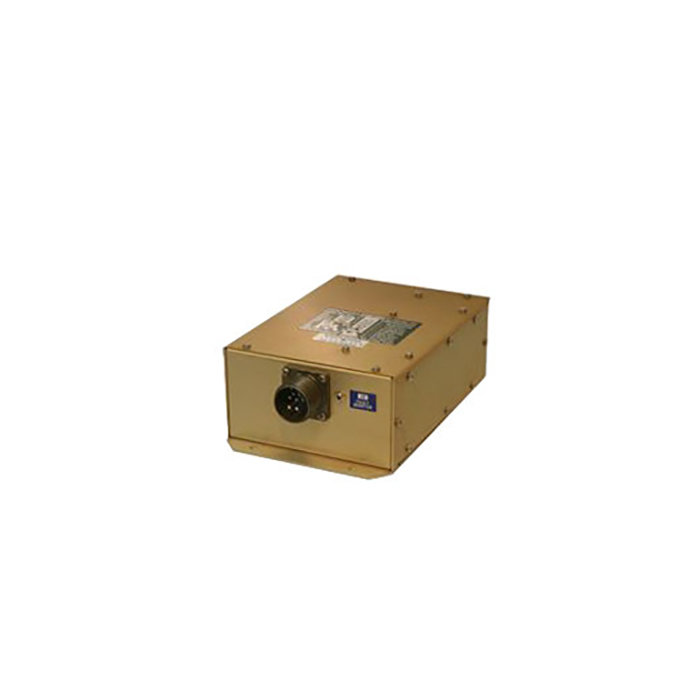

Picture of product SPC-10

Part #: SPC-10

NSN:

6130-01-257-7175

OEM:

KGS

Desc:

Inverter

Part Number :

KGS Electronics



FEATURES

  • 400 Hz sine wave power
  • Design features include pulse width modulated square to sine wave power conversion for lightweight and reliability
  • Capable of delivering an overload of 150% of rated current for no less than 5 minutes under all environmental conditions





SPECIFICATIONS

Input Voltage (VDC): Normal: 22 to 32   Abnormal: 20 to 37 Output Power  (Total): 100 VA,  115 VAC/26 VAC  100 VA/60 VA
Input Current (ADC): @ 28 VDC IN  4.8 Efficiency  (%): 75 to 78
Weight: 5.2 lbs. Output Voltage: 115 VAC and / or 26 VAC
Phase/Waveform: Single / Sine Wave Frequency: 400 Hz ± 1%
Frequency: 400 Hz ± 1% Amplitude Distortion: Less than 7% (3% Typ.)
Power Factor: .8 to -.95 Input Overvoltage: Operate up to 37 VDC input while supplying full rated VA output   power.  Output voltage under this condition is 115 VAC +5%, 7%.
Input Transient Protection: Withstands transients of 88 volts 1 mSec on the 28 VDC input line Overload & Short Circuit Protection: Withstands without damage or degradation load exceeding 150% of  rated output to an output dead short.Inverter delivers rated output on removal of above conditions
Altitude: 55,000 ft. Temperature: -65°F to +160°F (-55°C to +71°C)
Humidity: Tested to greater than 95% for 10 days, temperature was cycled between 75°F to 160°F Environmental: Qualified to meet RTCA paper D0-160 Env. Cat. D2BR--
Part Number: Description:
spc-10 Inverter, 28 VDC INPUT, DC GROUND, AC RETURN, 115 VAC OUTPUT, NO CONNECTION, 26 VAC OUTPUT, MS3106B14S-6S
spc-10(D) Inverter (28 VDC INPUT), 115 VAC OUTPUT, DC GROUND, REMOTE ON/OFF,  FAULT MONITOR, 26 VAC OUTPUT, MS3106B18-9S
SPC-10(PW) Static Inverter
spc-10(F) Static Inverter, REMOTE ON/OFF,  115 VAC OUTPUT, AC RETURN, ON/OFF RETURN, NO CONNECTION, PHASE LOCK, 26 VAC OUTPUT, 28 VDC INPUT, DC GROUND,  MS3106B20-16S
SPC-10HD Static Inverter, 28 VDC INPUT, 115 VAC OUTPUT, AC RETURN, DC GROUND, REMOTE ON/OFF,  FAULT MONITOR, 26 VAC OUTPUT, MS3106B18-9S
SPC-10(H) Static Inverter, REMOTE ON/OFF, REMOTE ON/OFF, AC RETURN, ON/OFF RETURN, FAULT MONITOR, PHASE LOCK, 26 VAC OUTPUT, 28 VDC INPUT, DC GROUND, MS3106B20-16S
SPC-10(n) Static Inverter, FAULT MONITOR, 28 VDC INPUT, PHASE LOCK, DC GROUND, REMOTE ON/OFF, AC RETURN, 115 VAC OUTPUT, 26 VAC OUTPUT, ON/OFF RETURN, MS3476L14-9S







SPC-10
- Inverter

NSN: 6130-01-257-7175
