Part #: | SPC-5(C) |
---|---|
Model: | SPC-5(C) |

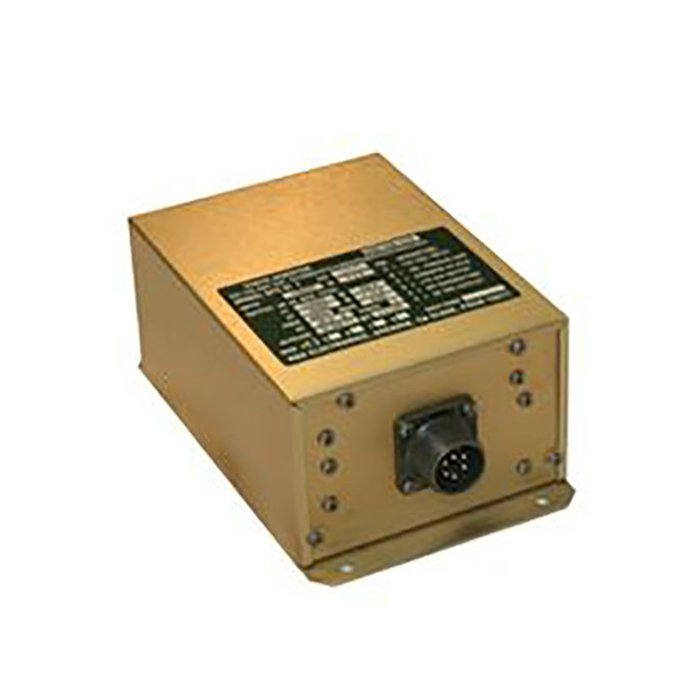

Desc: | Static Inverter (28V-115V/400 Hz/50VA) |
OEM: | KGS |
NSN: | 6130-01-548-7800 |
---|---|
Sched-B: | 8504400040 |
ECCN: | 3A225 |
Cage Code: | 16017 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
DESCRIPTION
The SPC-5( ) Series are capable of delivering an overload of 150% of rated current for a duration not less than five minutes under all environmental conditions
SPECIFICATIONS
input voltage (vdc): | 20 TO 36 VDC |
input current (adc) @ 28 vdc in: | 2.7 |
out power (total) 115 vac/ 26 vac: | 50VA, 50VA / 30VA |
efficiency (%): | 67 to 72 |
output voltage: | 115 VAC and / or 26 VAC |
phase/waveform: | Single / Sine Wave |
frequency: | 400 Hz ± 1% |
amplitude distortion: | Less than 7% (3% Typ.) |
power factOR: | 8 to -.95 |
weight: | 3.1 lbs. |
altitude: | 55,000 ft. |
Temperature: | -65°F to +160°F (-55°C to +71°C) |
humidity: | Tested to greater than 95% for 10 days, temperature was cycled between 75°F to 160°F |
input overvoltage: | Operate up to 37 VDC input while supplying full rated VA output power. Output voltage under this condition is 115 VAC +5%, 7% |
input transient protection: | Withstands transients of 88 volts 1 mSec on the 28 VDC input line |
overload & short circuit protection: | Withstands without damage or degradation load exceeding 150% of rated output to an output dead short.Inverter delivers rated output on removal of above conditions |
Environmental: | Designed to meet RTCA paper DO-160 Env. Cat. D2BR--- |
Part Number: | Description: |
---|---|
spc-5(c) | Static Inverter (28V-115V/400 Hz/50VA) |
NSN: 6130-01-548-7800
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
