NSN: |
6130-01-415-2375 |
OEM: |
KGS |
Desc: |

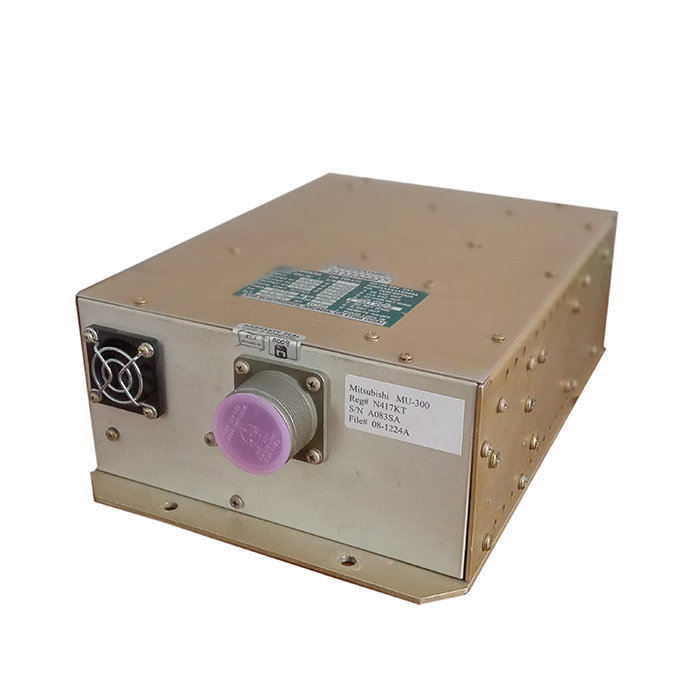

Static Inverter |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
|
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
Input Voltage: | Nominal; 28.0 VDC ± 4 VDC, Range: 20 to 37 VDC | Input Current: | 32A @ full load 3A max @ no load |
Output Voltage: | +5%-7% (± 2% typ. on 115V) Output #1: 115 VAC (750 VA max cont) Output #2: 26 VAC (150 VA max. cont.) Output #3: 5 VAC (30 VA max. cont) | Output Power: | 750 VA Total max |
Output Frequency: | 400 Hz ± 1% | Phase & Waveform: | Single phase sine wave |
Harmonic Distortion: | 2.0% typ. (5% max.) 20 to 37 VDC in. | Power Factor: | .8 to -.95 |
Efficiency: | 83% typical | Temperature: | -55°C to 71°C |
Weight: | 14.0 lbs | Overload Capacity: | Capable of 150% output current @ normal AC output for 5 minutes |
Input Voltage Protection: | Inverter withstands transients of 88 volts lasting 1 mSec on the 28.0 VDC | Altitude: | 55,000 ft |
Humidity: | Tested to greater than 95% for ten days, temperature cycled between 75°F to 160°F | Environmental: | Qualified to meet RTCA DO-160 env. cat. D2BR |
Mating Plug: | MS3106A24-11S | Frequency Synchronizing: | Phase lock 375 Hz to 425 Hz |
Part Number: | Description: |
---|---|
SPC-75() | Same as above except Frequency Synchronizing - Synchronize from 375 Hz to 425 Hz, shutdown feature |
SPC-75(B) | Static Inverter |
NSN: 6130-01-415-2375
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
