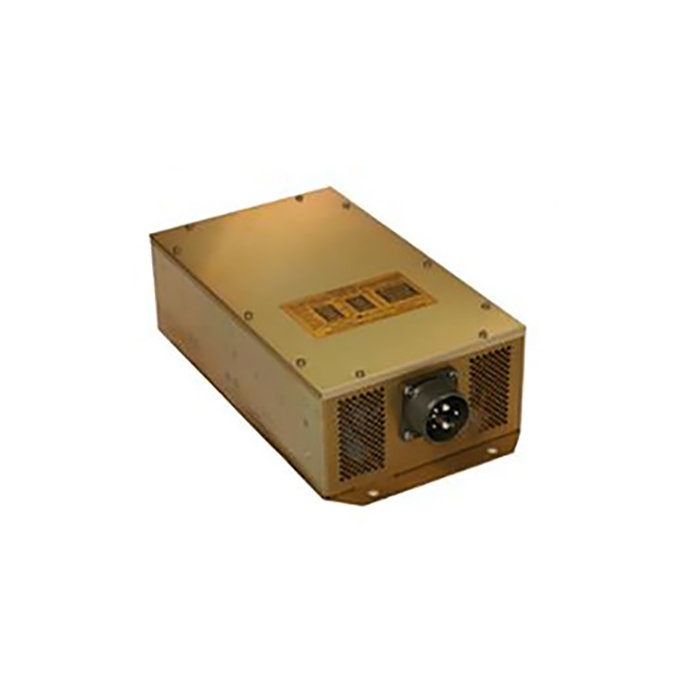

Picture of product SS101

Part #: SS101

NSN:

5930-00-501-0017

OEM:

KGS

Desc:

Static Inverter

Part Number :



SS101
FEATURES
  • Solid state circuitry to invert a 28 VDC input to either a 115 VAC, 60 Hz or 230 VAC, 50 Hz sine wave output
  • Crystal controlled oscillator for output frequency stability
  • Pulse-width-modulated square to sine wave power conversion for efficient, reliable, and quiet operation
  • Designed to power laptop computers, audio/video entertainment systems, portable electronics, microwave ovens, coffee makers and medical equipment in airborne, marine and ground mobile applications​



SPECIFICATIONS

INPUT VOLTAGE: 28VDC (nominal), 20VDC to 36.5VDC range Output Voltages: Sinewave/Single phase
Harmonic Distortion: 0.5% (nominal) Power Factor: +0.8 to -0.8
Efficiency: 87% (nominal) Response Time: 300 uSec (no load to full load)
Regulation: 1% line, 1% load, 2.5% temperature Overload Capacity 110% of the rated power for 2 hrs.; 150% of rated power for 5 min. (minimum)
Protection Circuit: The inverter will shutdown under the following conditions: Input voltage > 37.5 ±1 Vdc, Input voltage < 18 Vdc ±1.5 Vdc, Internal high ambient temperature
Short circuit condition (after 2 to 15 sec)(manual reset)
Remote On-Off: Yes
Operating Temperature: -55°C to 71°C (-65°F to + 160°F) Altitude: 55,000 ft
Environmental: DO-160C environmental category Cooling: Thermostatically controlled brushless fan
Compliance: FAA TSO-C73


Part Number: Description:
SS101  Static Inverter ,  50/60 Hz Lightweight Sinewave







SS101
- Static Inverter

NSN: 5930-00-501-0017

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
