Part #: | SS120 |
---|---|
Model: | SS120 |
Desc: | Inverter (28/115, 60Hz, 1200VA) |
OEM: | KGS |
NSN: | 5910-00-223-5137 |
---|---|
Sched-B: | 8504409570 |
ECCN: | 3A999 |
Cage Code: | 16017 |
FEATURES
Input Voltage: | 28 Vdc (nominal), 20 Vdc to 36.5 Vdc Range | Output Waveform & Phase: | Sinewave/Single Phase |
Input Amperage: | 1.0 A (no load) 50 A (nominal) | Output Voltage: | 115 Vrms ± 3 Vrms (nominal) |
Output Amperage: | 10.3 A (nominal) | Harmonic Distortion: | 0.5 % (nominal) |
Power Factor: | +0.8 TO -0.8 | Efficiency: | 87 % (nominal) |
Response Time: | 300 uSec (No Load to Full Load) | Regulation: | 1 % Line, 1 % Load, 2.5 % Temperature |
Overload Capacity: | 110% of rated power for 2 hrs, 150% of rated power for 5 min. (SSA120 = No Overload) | Protection Circuit: | The inverter will shutdown under the following conditions: •Input voltage > 37.5 ± 1 Vdc. •Input voltage < 18 Vdc ± 1.5 Vdc. •Internal high ambient temperature. •Short circuit condition (after 2 to 15 Sec)(manual reset) |
Remote On-Off: | Yes | Operating Temperature: | -55 ° C to +71 ° C (-65 ° F to +160 ° F) |
Altitude: | 55,000 ft | Environmental: | DO-160C Env. Cat. F3ZBB[ LV] E1XXXXXBXAXXXZXXX |
Cooling: | Thermostatically controlled brushless fan (on above 50 °C) | Compliance: | FAA TSO-C73 |
Part Number: | Description: |
---|---|

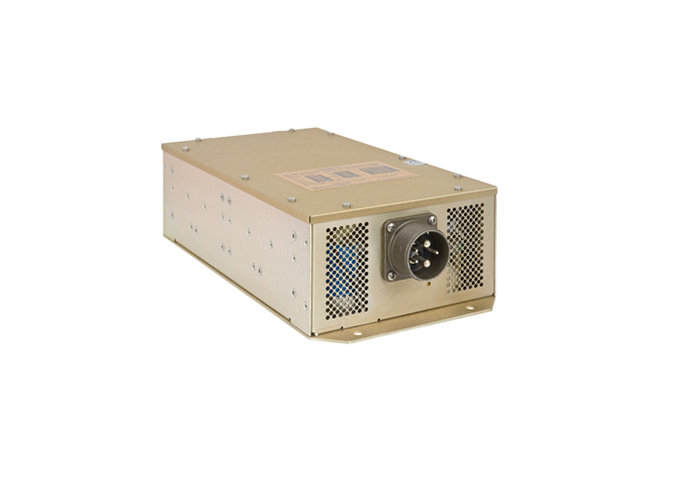

SS120 | Static Inverter, 115V, 60Hz, 1200VA, Sine Wave, Lightweight |
Serial # | 1192 |
---|---|
Condition | SV |
Mods | 10 |
Tag Date | 04/24/25 |
Shop | KGS Electronics |
Warranty | 6 Months |
Serial # | 545 |
---|---|
Condition | SV |
Mods | 6-7,9-10 |
Tag Date | 04/24/25 |
Shop | KGS Electronics |
Warranty | 6 Months |
NSN: 5910-00-223-5137
Price | Condition | Status |
---|---|---|
$2,350.00 | SV EXCHANGE | 2 IN STOCK |
$4,950.00 | SV OUTRIGHT | 2 IN STOCK |
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
