Part #: S1820502-02
Model: 406AP
NSN: |
|
OEM: |
Kannad |
Desc: |
Portable ELT |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | Tag Info | |
|---|---|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

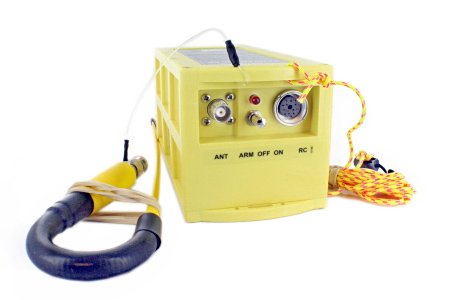

406 AP
FEATURES
- Automatic portable ELT three frequency transmitter
- COSPAS-SARSAT system with 406 MHz frequency
- Global Coverage - multiple satellite constellation
- Precise pinpointing (<1NM)
- Identification of the aircraft in distress
- Efficient process of false alarms
- Designed to be installed near the tail and to be connected to an outside antenna
- Shock sensor will automatically activate the ELT in the event of a crash
- When removed from its bracket and connected to the auxiliary antenna, the 406 AP becomes an autonomous survival beacon operating on 3 frequencies
- Velcro fixture for easy mounting & programming by dongle (optional)
- Is programmed with either the aircraft tail number, a serial number or the aircraft operator designator
- Remote control panel (an option) located in the cockpit allows manual activation and the self test of various operating parameters
- Buzzer & Indicator for activation warning
- Navigation Interface (option) can be added to download aircraft position in the ELT
- Maintenance is limited to a monthly self-test
- 6 Year Battery Life
- Qualified in Europe with JTSO-2C91a & JTSO-C126 in compliance with EUROCAE ED62 standard and by FAA with TSO-C91a and TSO-C126
SPECIFICATIONS TRANSMISSION: 406.025 MHz:
| 5W (37 ± 2dBm) |
| Modulation 16K0G1D (bi-phase L encoding) with aircraft identification code |
| Distress Message Every 50 Sec |
121.5 MHz and 243 MHz:
| 100mW min (+20dBm) |
| Modulation 3K20A3X |
| Audio Sweep From 1420 Hz to 490 Hz |
| Continuous Transmission |
Power Supply:
| Solid Cathode Lithium Battery Pack (LiMn02) |
| Battery Replacement Every 6 Years |
Programming:
| Aircraft nationality and registration marking |
| Aircraft operator designator and ELT serial number up to 4096 |
| Aircraft ICAO 24 bit address |
| Serial Number |
| Pin programming connector an option |
Activation:
| Automatically by an integrated shock sensor |
| (G-Switch) |
| Manually |
| Remotely (remote control panel in the cockpit, an option) |
Self Test:
| 406 MHz RF Power |
| Battery Voltage |
| Frequency |
| Programming |
Temperature Range:
| Operating: | -20°C to +55°C | Storage: | -55°C to +85°C |
Controls:
| ARM/OFF/ON switch, Bright red LED, BNC antenna connector, |
| DIN12 remote control connector |
Housing:
| Material: | Molded Plastic | Color: | Yellow (color compounded) |
| Transmitter Dimensions: | 6.77" x 3.22" x 3.22" | Overall Dimensions Max (w/Auxiliary Antenna): | 11.2" x 4.2" x 3.6" |
| Weight: | 2.84 lb w/battery, bracket & auxiliary antenna | Mounting: | Bracket w/Velcro Strap |
Auxiliar Antenna:
| Three frequency (121.5 / 243 / 406 MHz) |
| Whip 400mm (15.75") |
| BNC connector |
| Part Number | Portable ELT Description: |
|---|---|
| S1820502-01 | ELT Kannad 406 AP |
S1820502-02
- Portable ELT
| Price | Condition | Status |
|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
What is the service life for most ELT 406 MHz?
It depends on the make and model of the ELT. However, most 406 ELTs have a battery life of either 4 or 5 years. Most batteries can transmit for as long as 24 hours.
What is the difference between the Programming Dongle and Programming Adapter from Kannad?
The Programming Dongle (P/N S1820514-06) is a portable memory module that contains the identification information for an aircraft. This dongle usually remains on board the aircraft and allows for an unprogrammed ELT to quickly be programmed with the aircraft identification information. The dongle is programmed via PC interface by an Kannad authorized distributor or shop.
The PR600 Programming Adapter (P/N 1201570) is the computer interface adapter needed to program the ELT usually on a bench type setup. Authorized Kannad programming training is required to utilize the PR600 for programming ELTs.
The PR600 Programming Adapter (P/N 1201570) is the computer interface adapter needed to program the ELT usually on a bench type setup. Authorized Kannad programming training is required to utilize the PR600 for programming ELTs.
Why should you install a 406 MHz ELT in place of an existing 121/243 MHz ELT?
After February 1st, 2009, Emergency Locator Transmitters (ELTs) operating on the 121.5 and 243 MHz will not be monitored by the COSPAS-SARSAT satellite system. There are many false distress signals and searches initiated each year with ELTs. The newer 406 MHz ELTs transmit unique aircraft information allowing authorities to contact an aircraft owner before a search is initiated. Therefore, 406 MHz significantly decrease the amount of unnecessary searches.
While 121.5 MHz is the international distress signal, it has limitations in relation to the search and rescue efforts that would follow the activation of this frequency by an ELT. Accuracy to a crash site of an aircraft with a 121 MHz ELT can be up to 20 miles. With the enhanced performance of the 406 MHz ELT and programmed aircraft information, accuracy is improved to 2 miles.
After February 2009, the 121/243 distress signals will only be detected by ground based receivers such as air traffic control, local airports, or other aircraft. Therefore, the search and rescue efforts related to an aircraft with an older ELT could be limited and will take longer, especially in a remote location.
Some aircraft owners do not respond positively towards FAA mandates. The February 1st 2009 ELT date is not a deadline to comply with any sort of ELT mandate. As mentioned, this date only applies the discontinuance of 121/243 ELT monitoring by the COSPAS-SARSAT satellite system. Therefore, aircraft owners must decide what value to place on their safety and survival should they be put in an emergency situation where the ELT would be activated.
While 121.5 MHz is the international distress signal, it has limitations in relation to the search and rescue efforts that would follow the activation of this frequency by an ELT. Accuracy to a crash site of an aircraft with a 121 MHz ELT can be up to 20 miles. With the enhanced performance of the 406 MHz ELT and programmed aircraft information, accuracy is improved to 2 miles.
After February 2009, the 121/243 distress signals will only be detected by ground based receivers such as air traffic control, local airports, or other aircraft. Therefore, the search and rescue efforts related to an aircraft with an older ELT could be limited and will take longer, especially in a remote location.
Some aircraft owners do not respond positively towards FAA mandates. The February 1st 2009 ELT date is not a deadline to comply with any sort of ELT mandate. As mentioned, this date only applies the discontinuance of 121/243 ELT monitoring by the COSPAS-SARSAT satellite system. Therefore, aircraft owners must decide what value to place on their safety and survival should they be put in an emergency situation where the ELT would be activated.
Why should I consider purchasing a programming dongle with a Kannad ELT?
A programming dongle can be programmed with aircraft information and easily stored or transported. This dongle provides quick programming when connected to an ELT.
Some of the more common reasons and applications for a dongle are:
- Aircraft being ferried from one country to another
- Ownership transfer of an aircraft
- Aircraft tail number change
With the relatively low cost ($240 Retail) and the hazmat shipping considerations for 406 ELTs, it is much more cost effective for an owner to purchase a dongle to the owner to change their programming.
Some of the more common reasons and applications for a dongle are:
- Aircraft being ferried from one country to another
- Ownership transfer of an aircraft
- Aircraft tail number change
With the relatively low cost ($240 Retail) and the hazmat shipping considerations for 406 ELTs, it is much more cost effective for an owner to purchase a dongle to the owner to change their programming.
Why does my 406 MHz ELT need to be programmed?
Programmed aircraft information is essential for search & rescue, should the ELT be activated. When activated, the ELT will transmit your identifier.
An Emergency Locator Transmitter (ELT) should be programmed with either the aircraft tail #, a serial #, or the aircraft operator designator. The aircraft information programmed is determined by your country's requirements. The information is sent to the government agency responsible for keeping the database of the country in which your aircraft is registered.
The ID is linked to your SAR database, containing valuable aircraft information: Type of Aircraft, Address of Owner, Telephone # of Owner, Aircraft Registration #, and Alternate Emergency Contact, etc.
Keeping this information up to date & accurate is a major concern of the Search & Rescue Centers. Without accurate information, valuable time may be lost in attempting to locate the owner of the aircraft.
Your ELT can easily be programmed by a certified repair station, such as Southeast Aerospace.
Contact Southeast Aerospace today for more information on ELT programming.
An Emergency Locator Transmitter (ELT) should be programmed with either the aircraft tail #, a serial #, or the aircraft operator designator. The aircraft information programmed is determined by your country's requirements. The information is sent to the government agency responsible for keeping the database of the country in which your aircraft is registered.
The ID is linked to your SAR database, containing valuable aircraft information: Type of Aircraft, Address of Owner, Telephone # of Owner, Aircraft Registration #, and Alternate Emergency Contact, etc.
Keeping this information up to date & accurate is a major concern of the Search & Rescue Centers. Without accurate information, valuable time may be lost in attempting to locate the owner of the aircraft.
Your ELT can easily be programmed by a certified repair station, such as Southeast Aerospace.
Contact Southeast Aerospace today for more information on ELT programming.
What does COSPAS mean?
COSPAS is an acronym for the Russian words "Cosmicheskaya Sistema Poiska Avariynyh Sudov"
. These Russian words translate to "Space System for the Search of Vessels in Distress".
. These Russian words translate to "Space System for the Search of Vessels in Distress".
What does SARSAT mean?
SARSAT is an acronym for "Search And Rescue Satellite-Aided Tracking". The SARSAT system was developed as a joint effort by the USA, Canada, and France.
Which ELT is most appropriate for my aircraft?
Click here to view the ELT reference guide.
What are the ELT and ELT battery shipping guidelines?
Click here to view the guidelines.
Why do some parts indicate "REQUEST" or “RFQ” on the Southeast Aerospace website?
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
