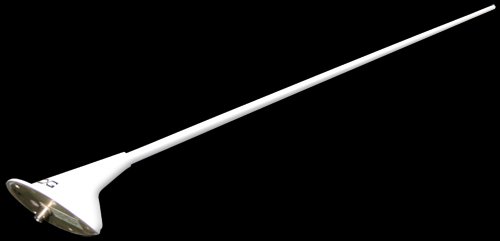

Picture of product ANT410

Part #: 0145486

Model: ANT410

OEM:

Kannad

Desc:

Rod ELT Antenna (White)

Part Number :

FOR REFERENCE ONLY



ANT 410
FEATURES
  • ELT Rod Antenna
  • White antenna with four bolt footprint as Chelton antennas, such as ELT10-214-2
  • 3-Frequency antenna with single connector
  • Designed for use on a slower moving aircraft up to speeds of 250 knots
  • Is FAA TSO qualified to C91 and C126 with the Litton 3-frequency system
  • Bolt pattern allows for ease of substitution
  • Manufactured by Dayton-Granger Inc



SPECIFICATIONS
Frequency: 121.5, 243 & 406 MHz    VSWR: 2.0:1 @ 121.5 & 243 1.5:1 @ 406 Mhz
Impendance: 50 Ohms Polarization: Vertical
Radiation Pattern:  Omnidirectional Connector: BNC
Weight: 0.3 lbs Finish:  White Polyurethane
Height:  18.6" Construction:  Fiberglass rod Aluminum base
Speed Rating:  250 Knots Approvals:  FAA TSO C91a, C126 (pending)
Part NumberELT Antenna Description:
0145486 Kannad P/N - White Rod Antenna for use with 406 ELT
720063 Dayton-Granger (Manufacturer) P/N



Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

COSPAS is an acronym for the Russian words "Cosmicheskaya Sistema Poiska Avariynyh Sudov" . These Russian words translate to "Space System for the Search of Vessels in Distress".
SARSAT is an acronym for "Search And Rescue Satellite-Aided Tracking". The SARSAT system was developed as a joint effort by the USA, Canada, and France.
