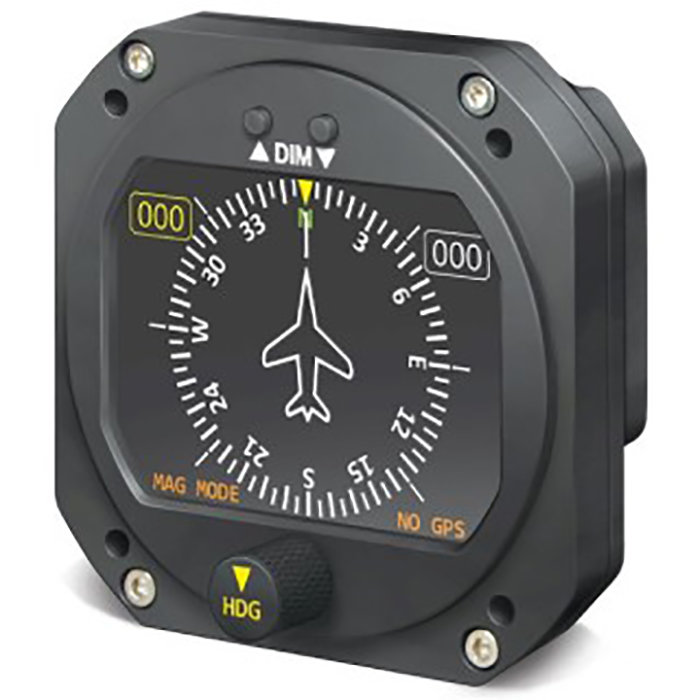

Picture of product RCA1510

Part #:

Model: RCA1510

OEM:

Kelly Mfg.

Part Number :
Kelly Manufacturing Logo

FEATURES
  • Companion to the RCA2610 Digital Attitude Indicator
  • Designed as a fully FAA Certified direct replacement for your mechanical Directional Gyro
  • Self-contained and fits in a standard 3-inch panel cut-out
  • No special external connections other than power and an external GPS antenna
  • Multi-Volt function allows installation in both 14 Volt and 28 Volt systems
  • Combines data from its own internal magnetometer and GPS receiver for a more stable and accurate heading reading which also eliminates the need to "cage" or "zero" the instrument
  • No Mechanical gyroscope makes it more accurate than traditional heading indicators
  • Unlike a mechanical gyroscopic unit, the RCA1510 is not affected by drifting or wandering
  • The unit is designed to work without GPS input if the GPS signal is lost
  • The highly visible screen has adjustable brightness controls
  • It has a traditional rotating dial display with digital numeric headings
  • The pilot can adjust the Heading Bug just like a mechanical instrument or use the Quick-Set Heading Bug; a double-push of the HDG knob sets the Bug to the current heading
  • Heading bug
  • Dedicated Antenna = instrument obtains GPS signal from a dedicated powered antenna
  • RS232 Serial Connection = instrument obtains GPS information thru an RS232 communication signal from an existing GPS receiver on the aircraft
  • Panel Tilt is set by the user at time of installation so it is no longer necessary to specify Panel Tilt when ordering part numbers
  • Dual-processor performance
  • GPS input enhanced
  • 360-degree of pitch and roll
  • Multi-volt operation (9 to 32 volts)
  • Fits standard cutouts
  • Sharp anti-aliased display
  • Totally digital -- no moving parts
  • FAA Certified
  • 2-year limited warranty



SPECIFICATIONS
operating voltage: 9 to 32VDDC operating temperature range: Temperature Range: -30º to +55º C
running current: (14VDC system) 0.20 AMPs MAX, (28VDC system) 0.18 AMPs MAX mating connector: MS3116E8-4S or equivalent
circuit breaker size: 1AMP dimensions:
accuracy: 2 Degrees weight: 8 oz. Max
faa specification Conformance: TSO-C6e, TSO-C113a, DO-160G & DO-178B Level C


Part Number: Description:
103-0503-01 Dedicated Antenna (SMA)
103-0503-03 Dedicated Antenna (SMA), Battery Backup
103-0503-05 RS232 Serial Connection
103-0503-07 RS232 Serial Connection, Battery Backup



103-0503-03-01
- Digital Heading Indicator (3-Inch)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
103-0503-03-03
- Digital Heading Indicator w/ Battery Backup
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
103-0503-03-05
- Digital Heading Indicator w/ RS232
Price Condition Status
$2,875.00 NEW OUTRIGHT REQUEST LEAD TIME
103-0503-03-07
- Digital Heading Indicator w/ RS232, Battery Backup
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
