Part #: DM H21-1

Model: DM H21-1

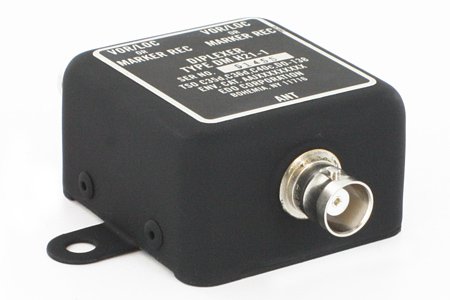

L3Harris - Dual VOR Coupler (BNC)
product image
Part Number :

L3Harris Logo



DM H21-1

FEATURES
  • Antenna Coupler
  • Designed to couple multiple receiver systems to a single antenna with a minimum of insertion loss
  • Electronically splits the received signals equally between the systems
  • Dual VOR or dual marker beacon ports will permit operation of two NAV receivers from one VOR antenna or two marker beacon receivers from one marker beacon antenna
  • Housed in an aluminum case with all circuit elements fully encapsulated



SPECIFICATIONS
Frequency: 108-118 MHz VSWR:

< 1.5:1

Impedance: 50 Ohms Isolation: > 20 dB (VOR/LOC to VOR/LOC)
Insertion Loss: 0.5 dB max (VOR/LOC port) Weight: 4 oz
Connectors: BNC TSO: C34c, C35d, C36d, C40c
Part Number Antenna Coupler Description:
DM H21-1 see details above.



DM H21-1
- Dual VOR Coupler (BNC)

NSN: 5985-01-077-1513

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
REQUEST AR OUTRIGHT REQUEST
