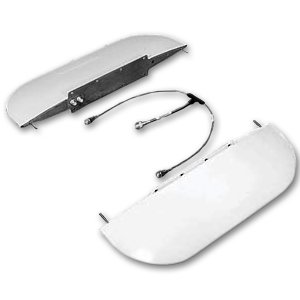

Picture of product DM N4-15
Part #: DM N4-15
Model: DM N4-15
Desc: VOR/LOC Balanced Loop Blade Antenna
OEM: L3Harris
NSN: 5985-00-876-3309
Sched-B: 8529106000
ECCN: 7A994
Cage Code: 06141
Part Number :
L3Harris Logo

DMN4-15
FEATURES
  • VOR/LOC Balanced Loop Antenna
  • Designed for use on high performance aircraft where aerodynamic drag and component weight must be held at a minimum
  • Provide increased range and reduced bearing error versus dipole type installations
  • Rugged metal edges provide erosion resistance
  • Flush glass fiber housings ensure smooth airflow and reduced drag
  • Foam filled for maximum reliability
  • Intended primarily for new aircraft installations, but can be installed as a retrofit when dual antenna capability is required
  • FAA Specs: TSO-C40a



SPECIFICATIONS
Frequency Range: 108-118 MHz VSWR: 5:1 max
Radiation Pattern: Omnidirectional in the azimuth plane, approx. cos Ø in the vertical plane Impedance: 52 Ohms
Polarization: Horizontal Weight: 5.5 lbs
Height: 6.50" Connector: TNC

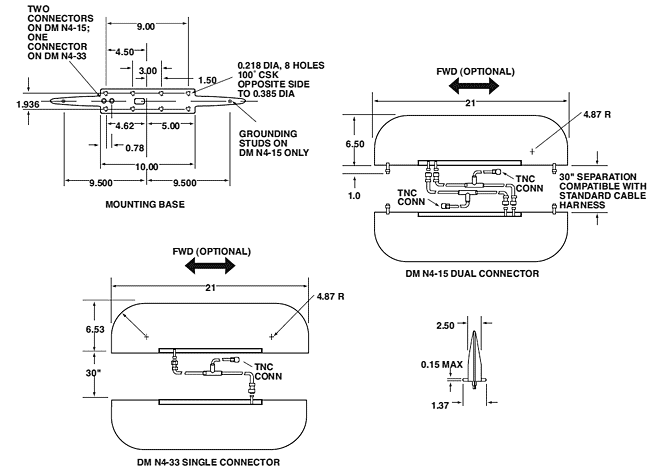

DM N25-1 Diagram



Part Number VOR/LOC Balanced Loop Antenna Description:
DM N4-15 see details above
DM N4-33 Same as above except for Weight: 5.2 lbs and is intended for retrofit or antenna modifications on existing aircraft and is designed for ease of installation



DM N4-15
- VOR/LOC Balanced Loop Blade Antenna

NSN: 5985-00-876-3309

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
