Picture of product DM N48-1-2

Part #: DM N48-1-2

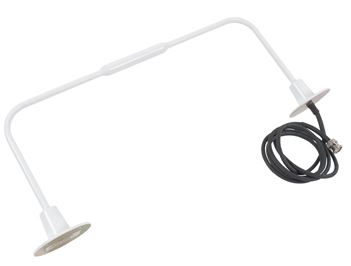

VOR/LOC Balanced Loop Antenna

Part Number :
L3Harris Logo

DM N48-1-2
  • VOR/LOC Balanced Loop Antenna
  • Assures omnidirectional radiation pattern at the horizon to obtain maximum signal for standard VOR and area navigation systems installed in lightweight aircraft, medium twins, and helicopters up to 250 mph
  • Dual VOR receiver operation is obtained when the antennas are used with the DM H21-1 diplexer


Frequency Range: 108-118 MHz VSWR: 5.0:1
Polarization: Horizontal Impedance: 50 Ohms
Radiation Pattern: Omnidirectional Weight: 1.12 lbs (0.51 kg)
Connector: BNC (male) Finish: White
DC Resistance: Open Circuited
Part Number VOR/LOC Balanced Loop Antenna Description:
DM N48-1-2 see details above


Serial # 37225
Condition NEW
Mods -
Tag Date 08/06/21
Shop L3 Harris Technologies - AZ
Warranty 1 Year
DM N48-1-2
- VOR/LOC Balanced Loop Antenna
Price Condition Status
