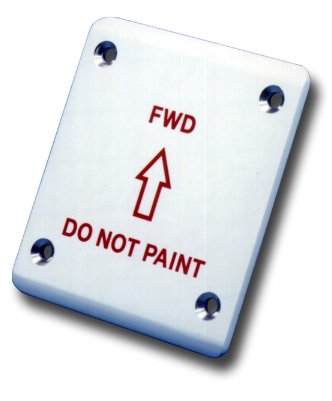

Picture of product DM PN19-2-1
Part #: DM PN19-2-1
Model: DM PN19-2-1
Desc: Rad. Alt. Antenna (Microstrip)
OEM: L3Harris
NSN: 5985-01-593-2431
Sched-B: 8529909740
ECCN: 5A991
Cage Code: 06141
Part Number :

FOR REFERENCE ONLY

L3Harris Logo

DM PN19-2-1
FEATURES
  • Radio altimeter antenna
  • Utilizes microstrip technology to provide an extremely low-profile antenna
  • High-quality, low-cost, lightweight and near conformal
  • Dielectric insert and radiating elements recessed into a complete four-sided metal housing
  • Housing protects the dielectric surface from the air stream for increased erosion protection and prevents water intrusion and delamination
SPECIFICATIONS
Frequency Range: 4200-4400 MHz VSWR: <2.0:1 4200-4400 MHz max <1.8:1 4275-4325 MHz max
Polarization: Linear gain: 10 dBi
Impedance: 50 Ohms connector: TNC Female
weight: 5 oz max temperature: -55°- +85°C Operating
altitude: -1,000 ft to + 70,000 ft lightning protection: dc Short
vibration: 10 G's Environmental: FAA TSO C87, ARINC 707/552 DO160C...E1-ABC’XWHDNSXXXXXXXXXX MIL-E-5400



Part Number radio altimeter antenna Description:
DM PN19-2-1 See above description
