Part #: LS03-05001-A
Model: LS03-05001-A

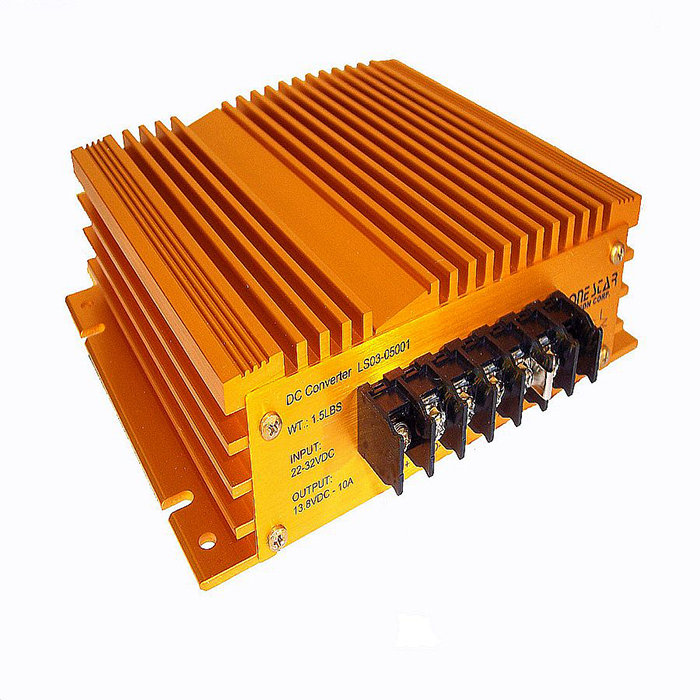

Desc: 28V to 14V Converter
OEM: Lone Star
Sched-B: 8807100010
ECCN: EAR99
Part Number :

NO LONGER AVAILABLE, INFORMATION IS FOR REFERENCE ONLY



LS03-05001-A

FEATURES

  • LS03-5001-A DC to DC Converter can operate 12 volt laptops, entertainment systems, radios, and GPS in a 24 volt aircraft
  • Powers 12 VDC electronics
  • 10C/12P Amps
  • 24 to 12 VDC
  • 1 Year Limited Warranty
  • DC Converter STEP DOWN



SPECIFICATIONS

iNPUT FREQUENCY: DC input VOLTAGE: 22-32 VDC
INPUT current: 5.5 Amp at 28.0 VDC OUTPUT CURRENT: 10 Amps, 12-Amps Peak at 13.8 VDC
EFFICIENCY: 88% min, 24vdc at full load OUTPUT VOLTAGE: 13.8 VDC
operating temperature: -55C to +70C STORAGE TEMP : -55C to +80C
OPERATING HUMIDITY: 5% to 90% RH STORAGE HUMIDITY: 5% to 95% RH
Ripple: .005 volts at 400hz Regulation: Line-Load = .03 VDC
Turn on delay: 1 Second max at 24 VDC Over Current Protection: Current limits at 110-140% of rated output current and recovers automatically
Short Circuit Protection: Circuit provides short circuit protection continuously without damage Over Voltage Protection: Output is protected against over-voltage
Mechanical Enclosure: 6.0W x 5.0L x 1.75H, Material: Aluminum extrusion Connector: Terminal Strip (5) Pins
WEIGHT: 1.5 lbs. VIBRATION Freq; 5 to 50 hz
MTBF: 100000 hrs. LABEL: Front Face
Safety: Meets UL, CUL, TUV, CE EMI: FCC Part 15 Class B
FAA : TSO Approved tso CATAGORY: Catagory A
Terminal Pin Assignment: Read terminal right to left,  Pin 1= Vin+ Pin 2 = on/off Jumper Pin 3 = Vin - Pin 4= V0 - Pin 5= V0+ altitude: 50,000 ft.
dIMENSION: 6.0W x 5.0L x 1.75H MATERIAL: Aluminum Extrusion
color: Gold Anodized
PART NUMBER:  Description:
ls03-05001-a DC 28V to 14V Converter



Serial # 005-003321
Condition AR
Mods -
Tag Date -
Shop -
Warranty -
